Moolah Manager - Developer Guide

1. Preface

Moolah Manager is a desktop application for managing one’s finances, optimised for use via a Command Line Interface (CLI). Designed for IT professionals who are fast typists, it can help to process day-to-day monetary transactions that are classified into income and expense. Users can expect to get an overview of their transactions at a glance and be provided with valuable insights into their spending habits. They are also encouraged to set budget goals to minimise their spending.

This developer guide for Moolah Manager V2.1 illustrates the high-level architecture and how the features are implemented within the application. Moreover, it specifies the scope and requirements of the product that were established prior to the development of features. We hope that this guide will assist developers in understanding how the application works and be able to maintain it seamlessly.

You may click here to visit the GitHub repository of this project.

Written by: Brian Wong Yun Long

2. Acknowledgements

The format of this developer guide was adapted from SE-EDU AddressBook Level 3 Developer Guide. The class diagrams are styled using the Cyborg Outline theme by Brett Schwarz.

Some parts of the source code in this application were reused and adapted from the team’s individual projects during the CS2113 IP phase.

Written by: Brian Wong Yun Long

3. Setting Up the Project

Before setting up the project on your computer, kindly check that you have installed:

Firstly, you should fork this repo, before cloning the fork to your computer.

Next,

  1. Ensure that Intellij JDK 11 is defined as an SDK, as described in this [Set up JDK guide] – this step is not needed if you have used JDK 11 in a previous Intellij project.
    • You might need to set the Project language level section to the SDK default option.
  2. Import the project as a Gradle project, as described in [se-edu’s Import Gradle Project guide].
  3. Running the project: After finishing the import, locate the src/main/java/seedu.duke/Duke.java file in this project, right-click it, and choose Run Duke.main().

Written by: Paul Low

4. Design

4.1. Architecture

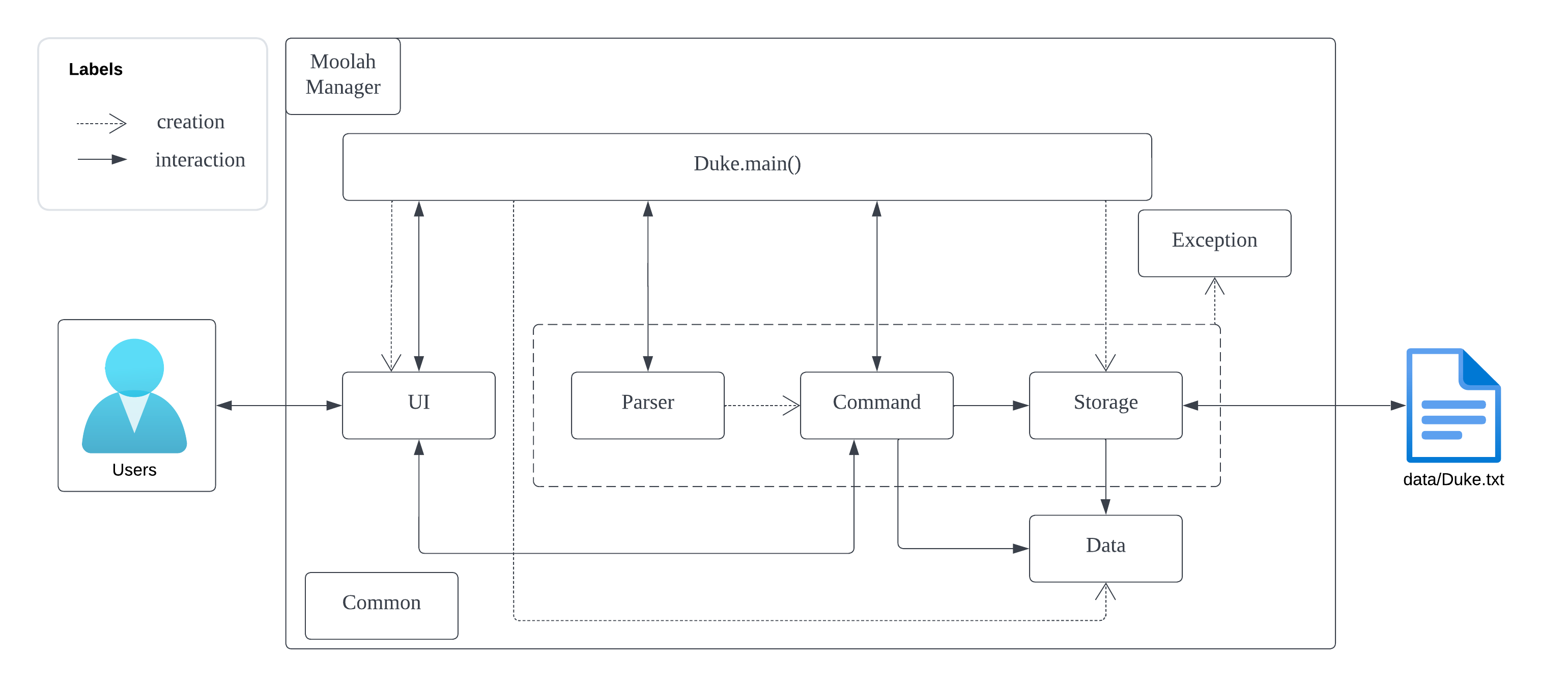

Figure 1: Architecture Diagram

The Architecture Diagram shown above explains the high-level design of Moolah Manager. The Duke class contain the main method which holds the responsibility for the following:

  1. On application launch, it will initialise the UI, Storage and Data components.
  2. During application execution, it will interact with UI, Parser, Command components to execute the command entered by the users.
  3. On any exception caught, it will handle the exception and interact with the UI to display the error message.

Common represents a collection of classes or enums used by multiple components.

The rest of the application consists of six components:

How the Architecture Components Interact with Each Other:

The sequence diagram below shows how the components interact on command budget b/1000.

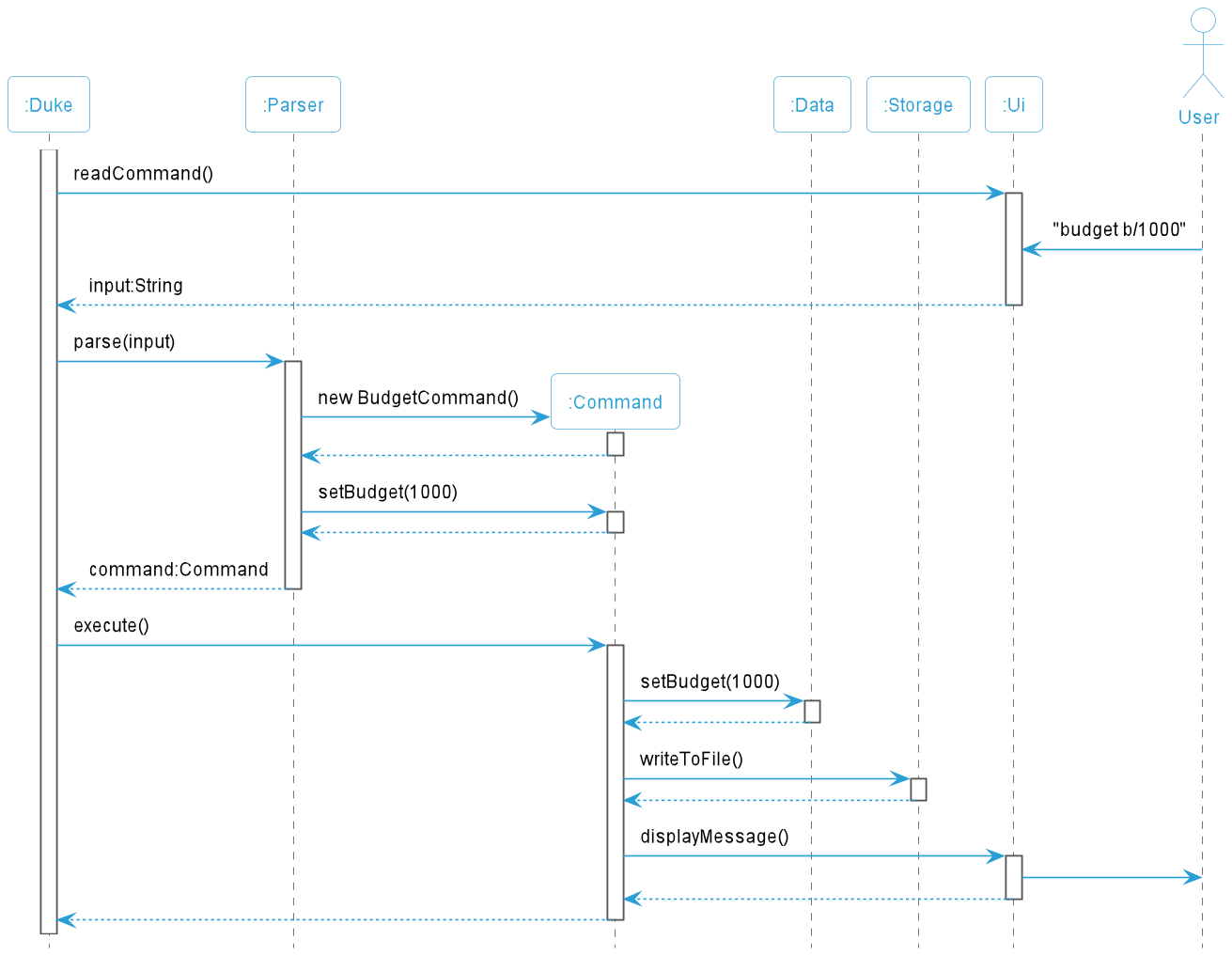

Figure 2: Architecture Interaction

The section below gives more detailed description of each component.

Written by: Chia Thin Hong

4.2. Command Component

The Command component is represented by a command package and a ListAndStats package. The packages contain all the classes that is part of the data stored by Moolah Manager. Within the command package, there are many classes, each corresponding to all of our commands which are supported by the application. The other package contains the ListCommand and StatsCommand commands.

The AddCommand class contains the operations pertaining to adding a transaction into the list of transactions.

The BudgetCommand class contains the operations pertaining to setting the budget for the user.

The ByeCommand class contains the operations pertaining to exiting the program.

The CommandTag class consists of all the tags that the program parses.

The DeleteCommand class contains the operations pertaining to deleting a transaction from the list of transactions.

The EditCommand class contains the operations pertaining to editing a transaction from the list of transactions.

The FindCommand class contains the operations pertaining to searching the list of transactions for transactions that match the inputted keywords.

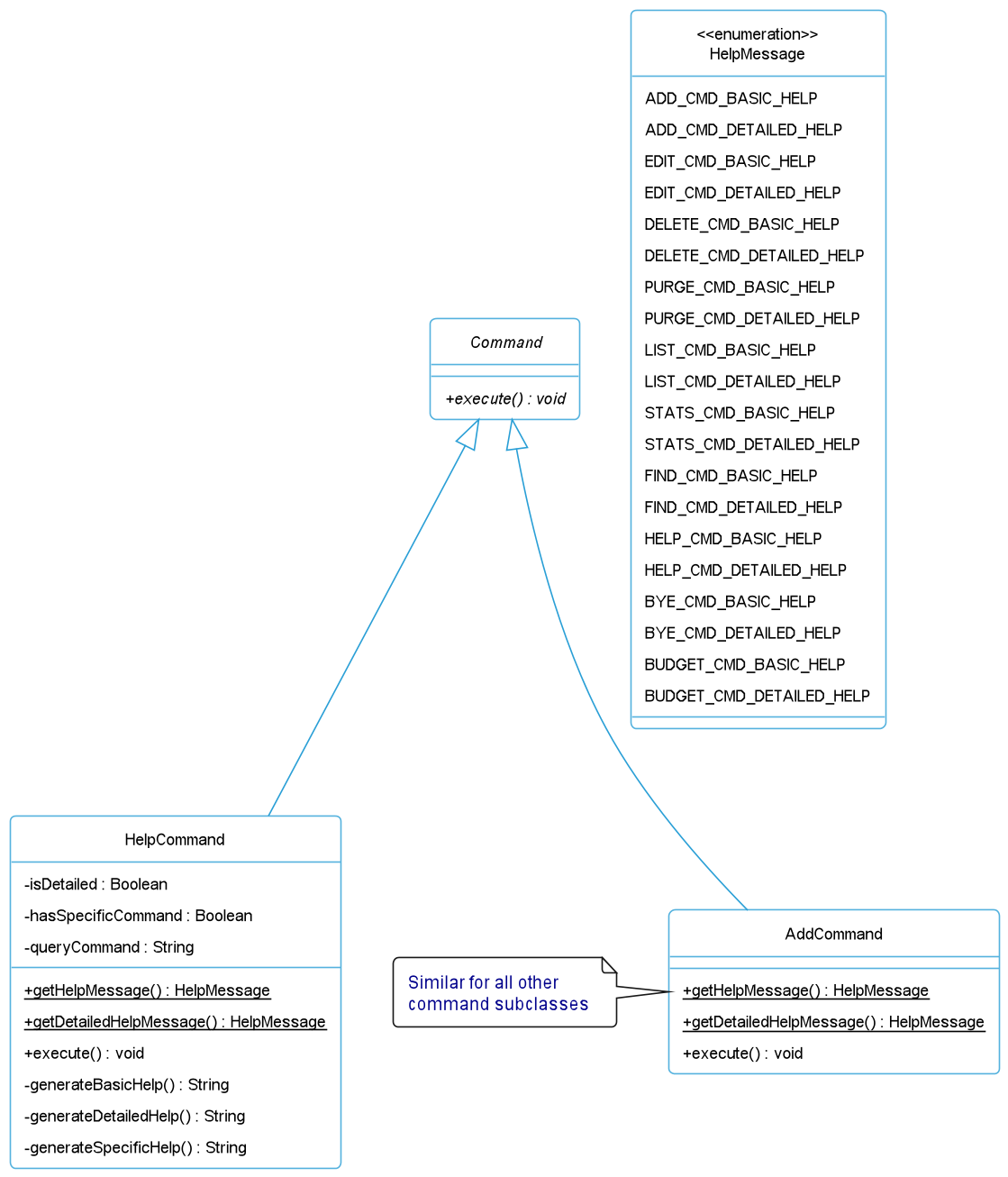

The HelpCommand class contains the operations pertaining to displaying help messages for the user.

The ListCommand class contains the operations pertaining to listing all transactions.

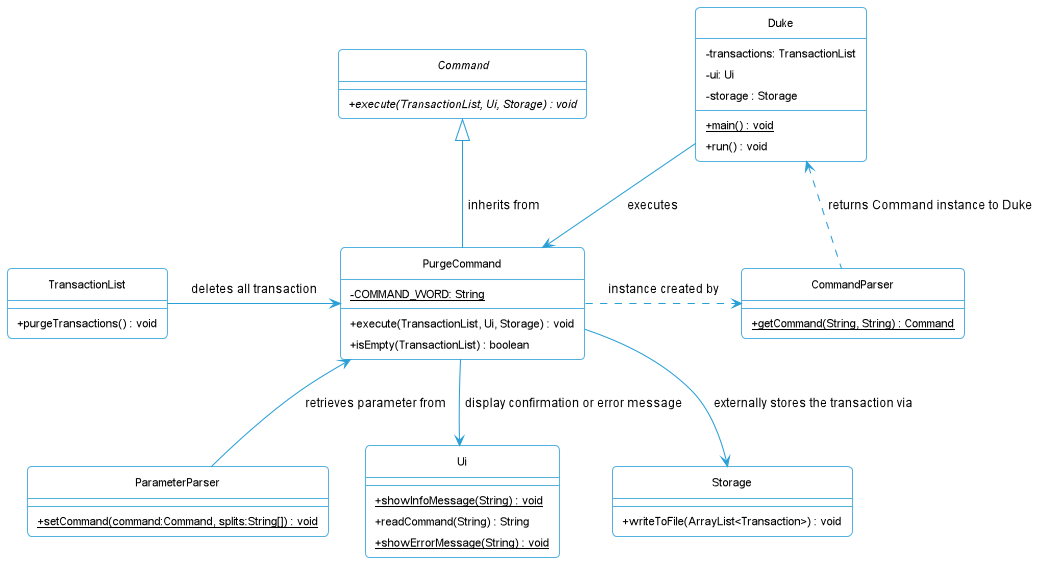

The PurgeCommand class contains the operations pertaining to deleting all transaction from the list of transactions.

The StatsCommand class contains the operations pertaining to getting statistics based on your list of transactions.

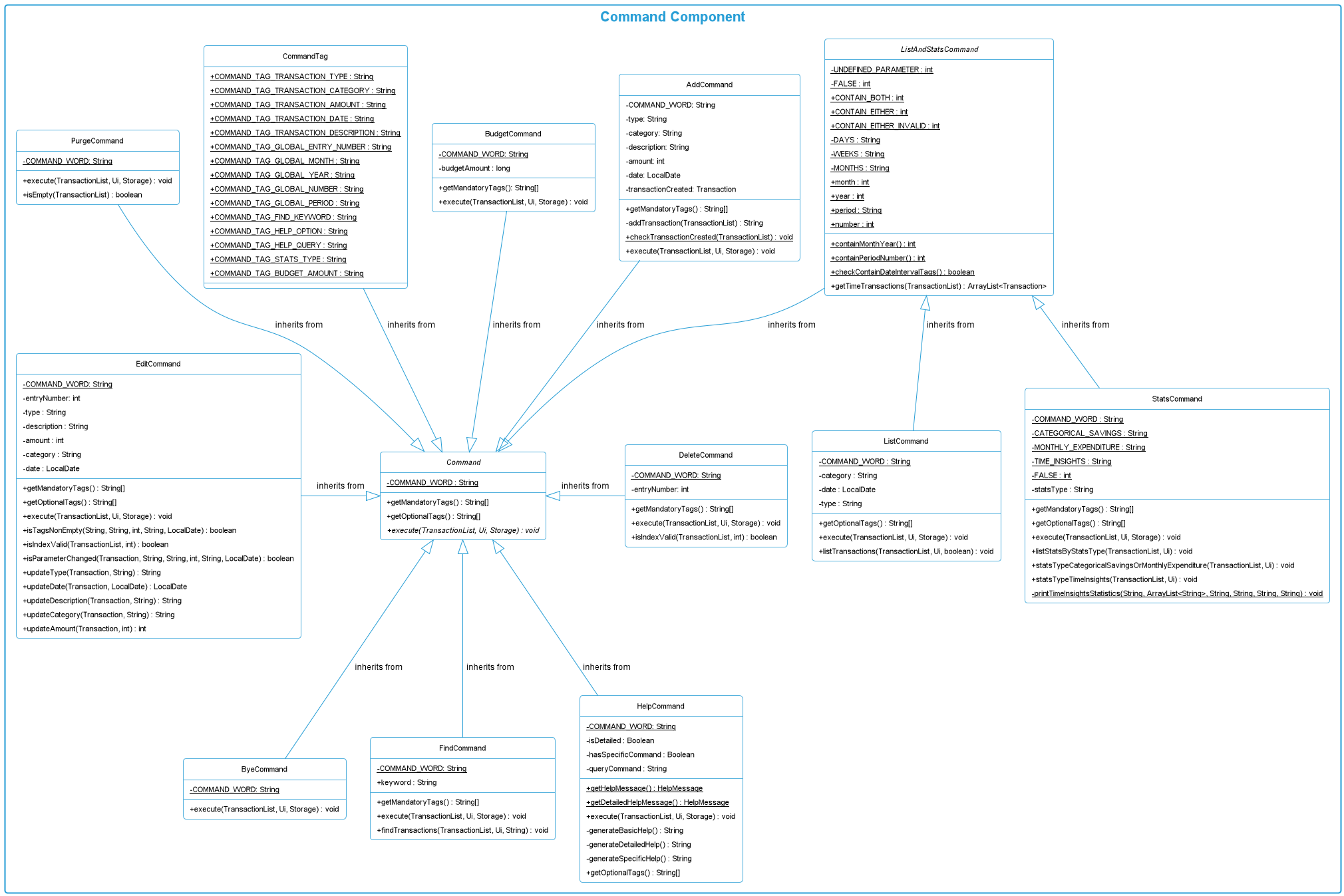

The structure of the command component in Moolah Manager is illustrated in the class diagram below:


Figure 3: Class Diagram for Command Component

Written by: Brian Wong Yun Long

4.3. Data Component

The Data component is represented by a data package which consists of all the classes that is part of the data stored by Moolah Manager. Within the data package, a transaction package, a budget class and a transactionList class is stored.

The budget class is a representation of the monthly budget of the users. Operations related to viewing the budget and generating budget reminders, tips and advices are implemented within this class.

The transactionList class is a representation of a list of transactions, and the operations related to the transaction list are implemented within this class.

Within the transaction package, the following classes are stored:

  1. Transaction
  2. Income
  3. Expense

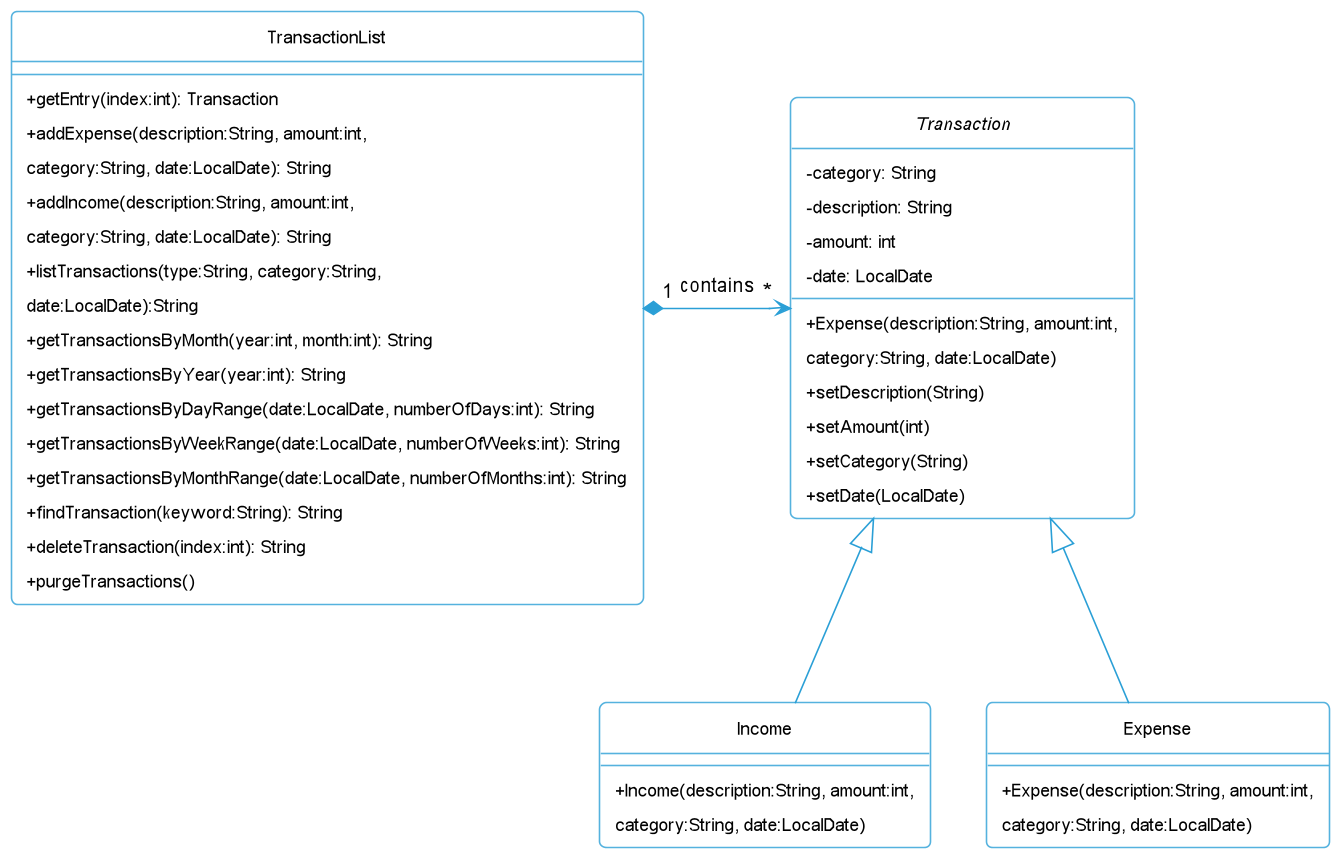

The structure of the data component in Moolah Manager is illustrated in the class diagram below:

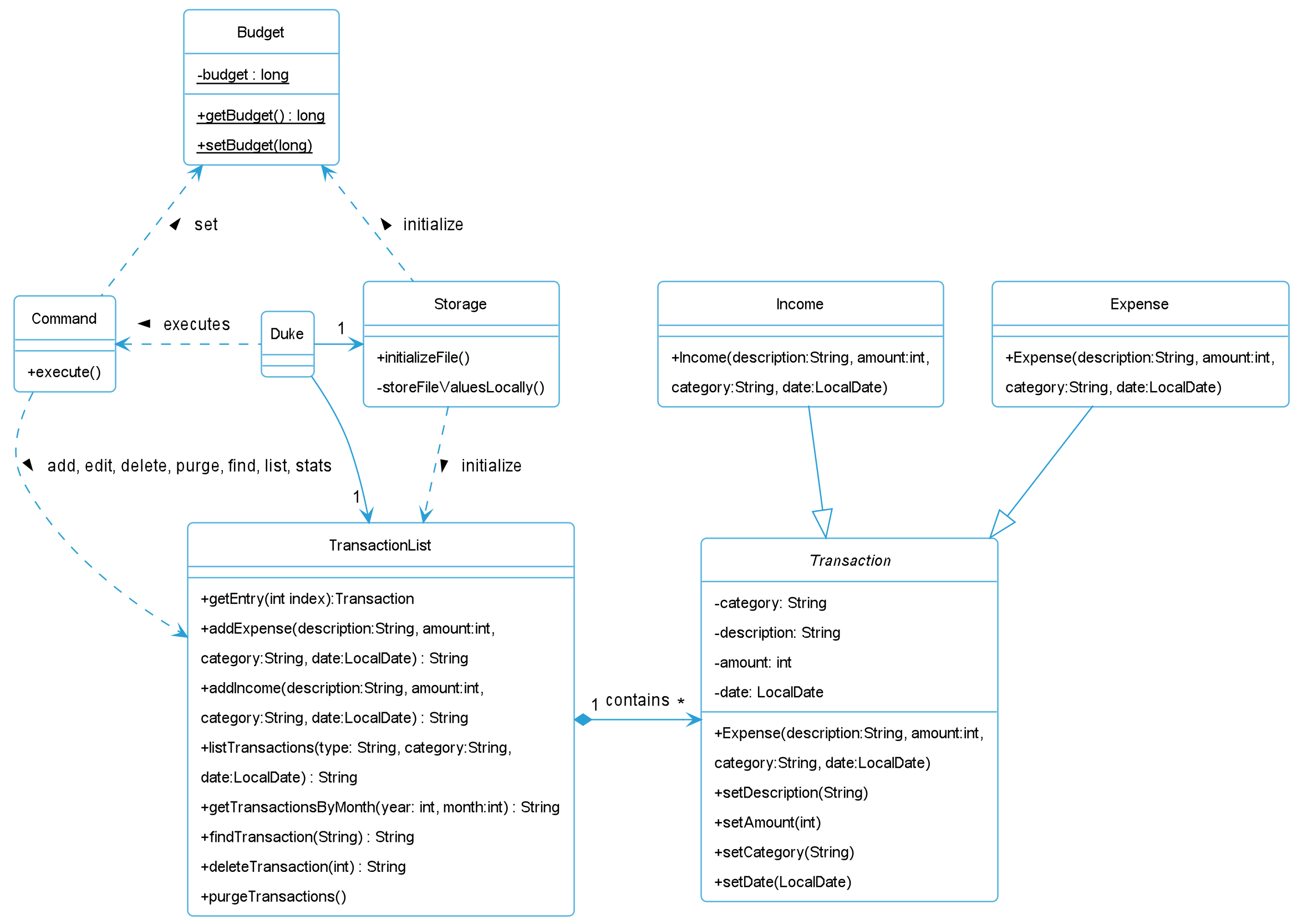

Figure 4: Class Diagram for Data Component

From the class diagram, it can be seen that the transactionList contain the methods for CRUD operations to the list, such as getting, adding, editing, deleting and purging of transaction(s) in the list.

The Transaction class is the abstract class of an Income or an Expense. A more detailed explanation on the implementation on the transactions can be viewed under Section Implementation for Transaction.

How the Data Component Interacts:

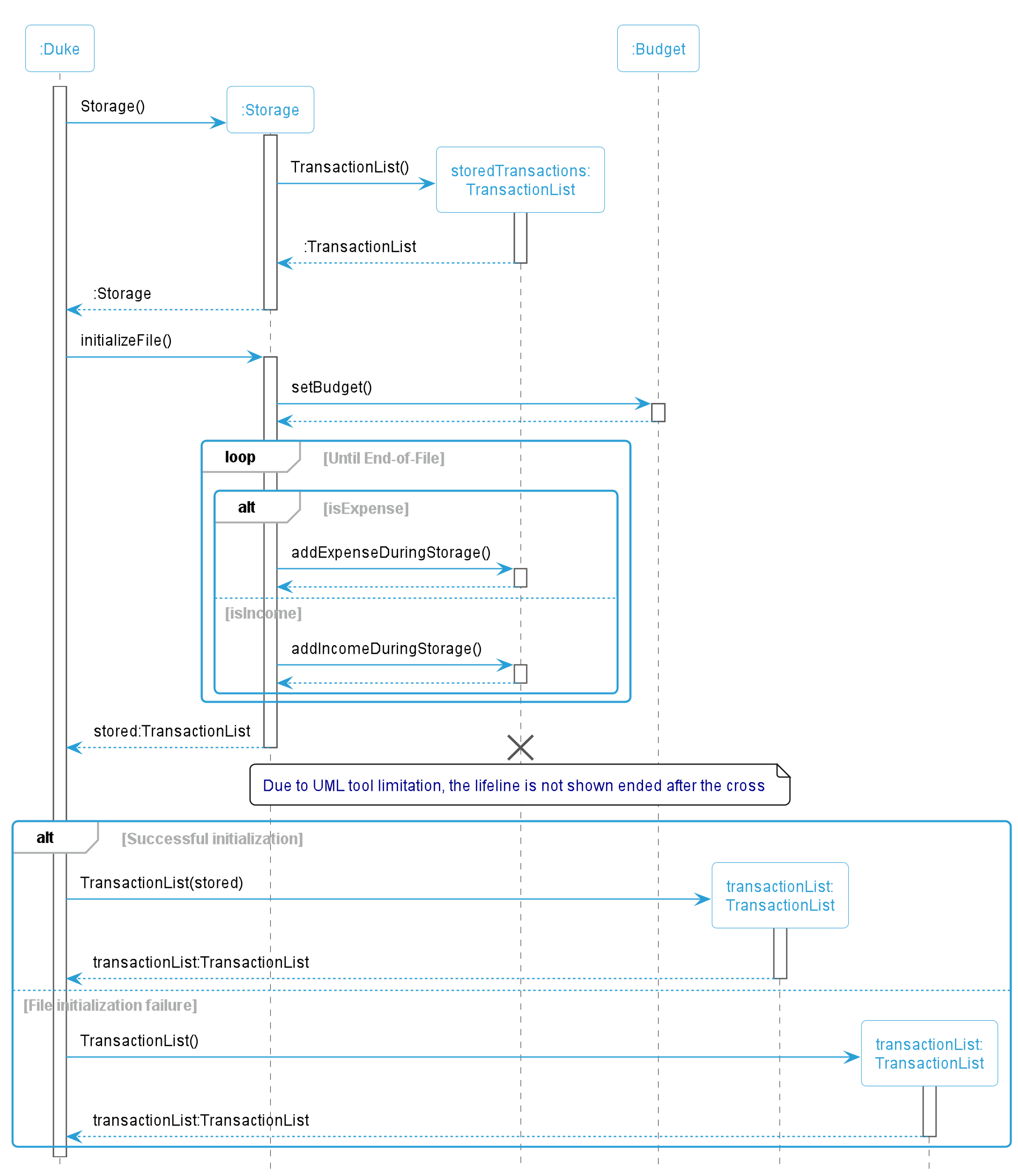

Figure 5: Sequence Diagram for Creation of Transaction List

Written by: Chia Thin Hong

4.4. Storage Component

The Storage component is a standalone class. It utilises its sub-methods and methods from external classes to perform it’s read and write functions.

The structure of Storage can be seen below.

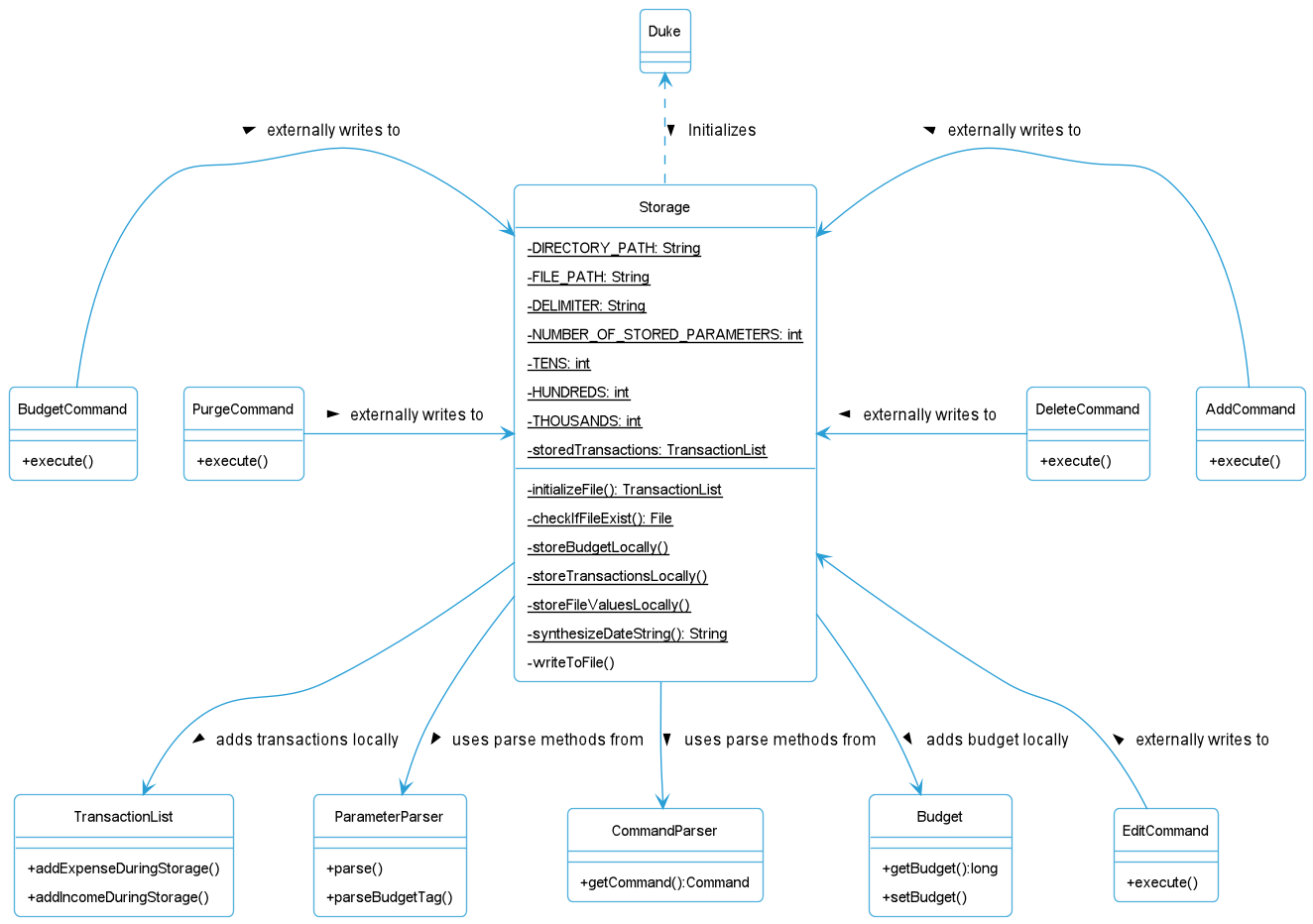

Figure 6: Class Diagram for Storage Component

  1. Duke initializes Storage and Storage#initializeFile is called.
  2. During the initialization , parser methods from CommandParser and ParameterParser would be used to process the entries within Duke.txt. Methods from Budget and TransactionList would be used for the storage of Budget amount and TransactionList entries into the program.
  3. TransactionList is returned to Duke after the storage of entries within Duke.txt.
  4. After initialization and upon user input, Command classes such as AddCommandcan call for Storage#writeToFile method in order to update the contents within Duke.txt.

Written by: Yong Chin Han

4.5. Parser Component

The Parser component consists of two main parsers: CommandParser and ParameterParser. Together, both these parsers are used to generate a command object with its accurate parameters according to the input from the UI.

The structure of the data component in Moolah Manager is illustrated in the class diagram below:

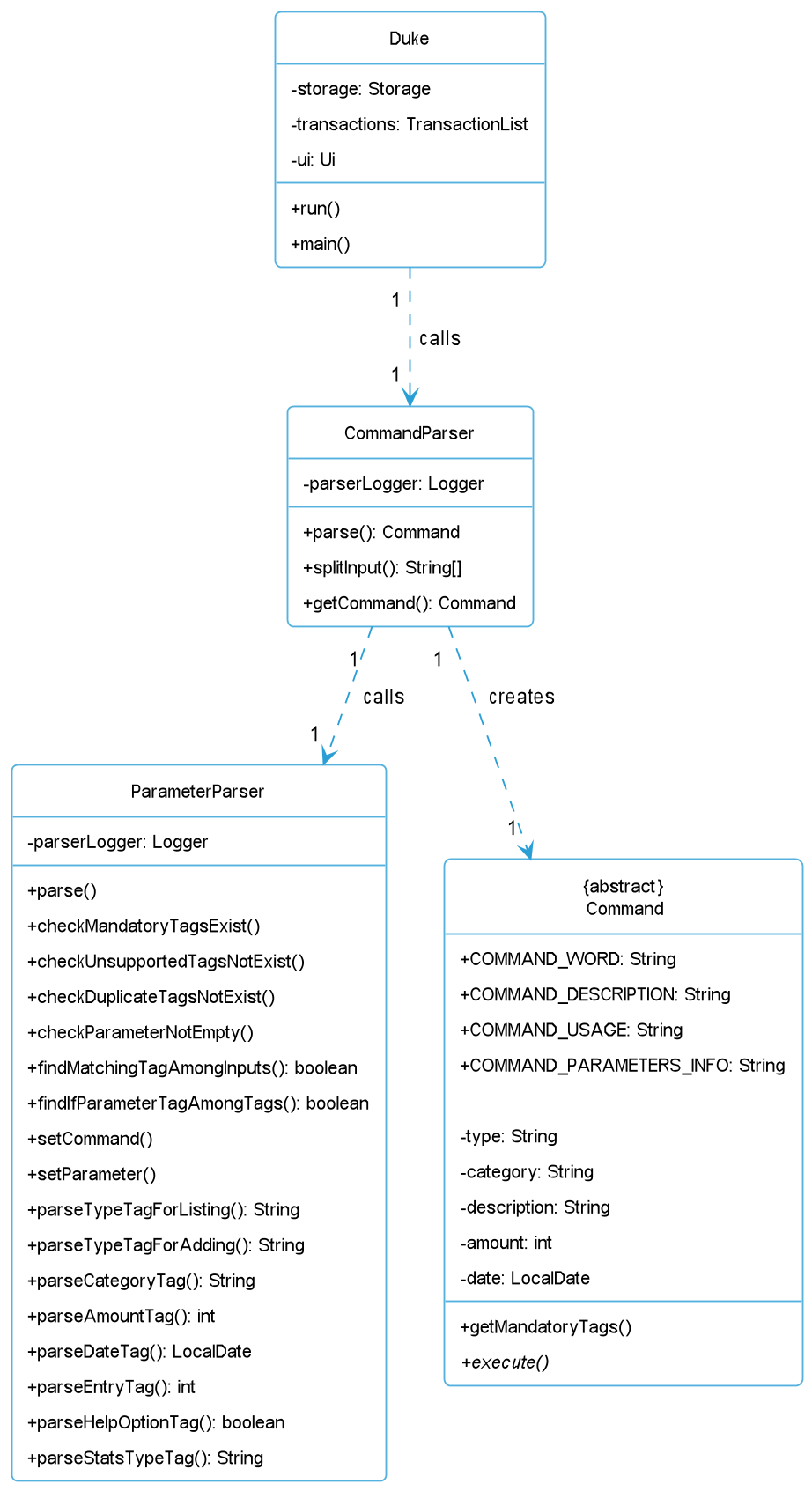

Figure 7: Class Diagram for Parser Component

After run() is called by main() in Duke, the CommandParser is first called to parse the command. The initial input is split into the commandWord and parameters using splitInput(). Next, the command word is parsed using getCommand(). With the new command created, the parameters are then parsed by calling ParameterParser.parse()

In ParameterParser, multiple checks are done to ensure that the userInput is accurate. For example, checks are done to confirm that all mandatory tags are filled, that no unsupported tags are used, no duplicate tags, no tags are without parameters and finally that the formats of parameters are accurate. After all the checks are donesetCommand is called to customize the command accordingly.

With the checked and accurate commands and parameters, the command is then executed by Duke

Written by: Paul Low

4.6. UI Component

The UI component is represented by a Ui class that handles the retrieval of user input and display of relevant information and error messages for the application. Static messages are pre-defined in the HelpMessages, InfoMessages and ErrorMessages enum classes belonging to the Common package, while dynamic messages such as the transactions list and statistics are generated during the execution of the application.

There are three types of pre-defined static messages:

The structure of the UI component in Moolah Manager is illustrated in the class diagram below:


Figure 8: Class Diagram for UI Component

As seen from the class diagram, every command that needs to print to the system output will have to call the methods from the Ui class. There are two important methods that developers should take note of.

Written by: Chua Han Yong Darren

4.7. Common Component

The Common component consists of the classes that are used by multiple components.

The class diagram below shows some types of information that are stored for the Add command in these classes.

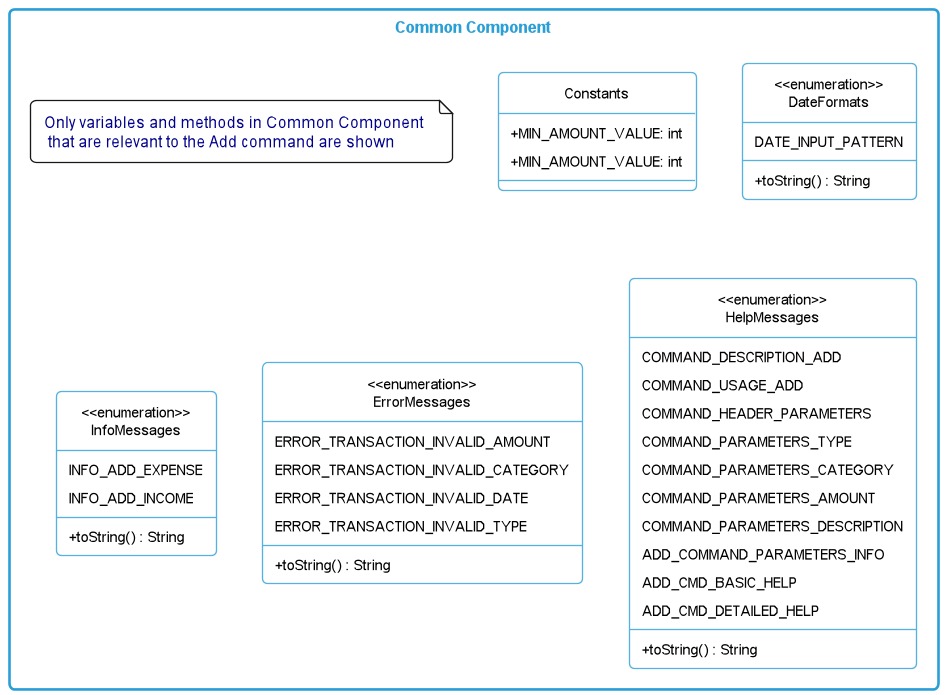

Figure 9: Class Diagram for Common Component

Written by: Chua Han Yong Darren

5. Implementation for Managing Transactions

5.1. Overview

Moolah Manager enables users to add, delete and edit their monetary transaction entries on a regular basis to keep their records up-to-date. Some of the information that needs to be stored include the type of transaction, category it belongs to, amount, date and its description. As users eventually need to view their past records, it is imperative that these records are stored in a central list that is easily retrievable when needed.

Written by: Brian Wong Yun Long

5.2. Proposed Implementation

Each Transaction object in Moolah Manager represents a transaction record, which can be of Income or Expense type. Below is a class diagram that illustrates the attributes that are contained within each transaction and how they are associated with the TransactionList. Note that non-important methods and variables have been omitted from the class diagram below for simplicity.


Figure 10: Class Diagram for Transaction

The TransactionList represents a dynamic array list that can store multiple Transaction objects, whereby each object contain the following mandatory attributes:

Attribute Description
category The type of transaction. It should either be expense or income.
description A category for the transaction. It can be any word without numeral, symbol or spacing.
amount The amount of the transaction. It is a positive whole number ranging from 1 to 10000000 (Ten Million).
date The date when the transaction took place on. It must be in ddMMyyyy format, e.g. 29102022.
description More information regarding the transaction. It is any word without any spacing.

The main CRUD operations in TransactionList that facilitates the data manipulation of Transaction object(s) include:

Following which, TransactionList provides methods such as listTransactions(), findTransactions(), getTransactionsByMonth(), getTransactionsByYear(), getTransactionsByDayRange(), getTransactionsByWeekRange() and getTransactionsByMonthRange() to enable users to view their past transaction records. Users will be able to retrieve transactions over the last N days, weeks or months as the getTransactionsByXRange() computes the difference in the dates between today’s date and the previous date.

Written by: Chua Han Yong Darren

5.3. Add Command

This feature allows the local and external (handled by Storage class) storage of transaction entries by the user.

The AddCommand inherits properties from the abstract Command class.

AddCommand is dependent on CommandParser which accesses its COMMAND_WORD and creates a new AddCommand object which would be returned to Duke. Duke is associated to AddCommand by calling for AddCommand#execute(). It is also associated with TransactionList, Ui, Storage, which are used within AddCommand methods like AddCommand#execute() and AddCommand#addTransaction(). Lastly it is also associated with ParameterParser which calls forAddCommand#getMandatoryTags() that retrieves the mandatory tags (which itself is taken from CommandTag).

The relationship between the classes are shown below. Non-essential info has been omitted for simplification purposes.

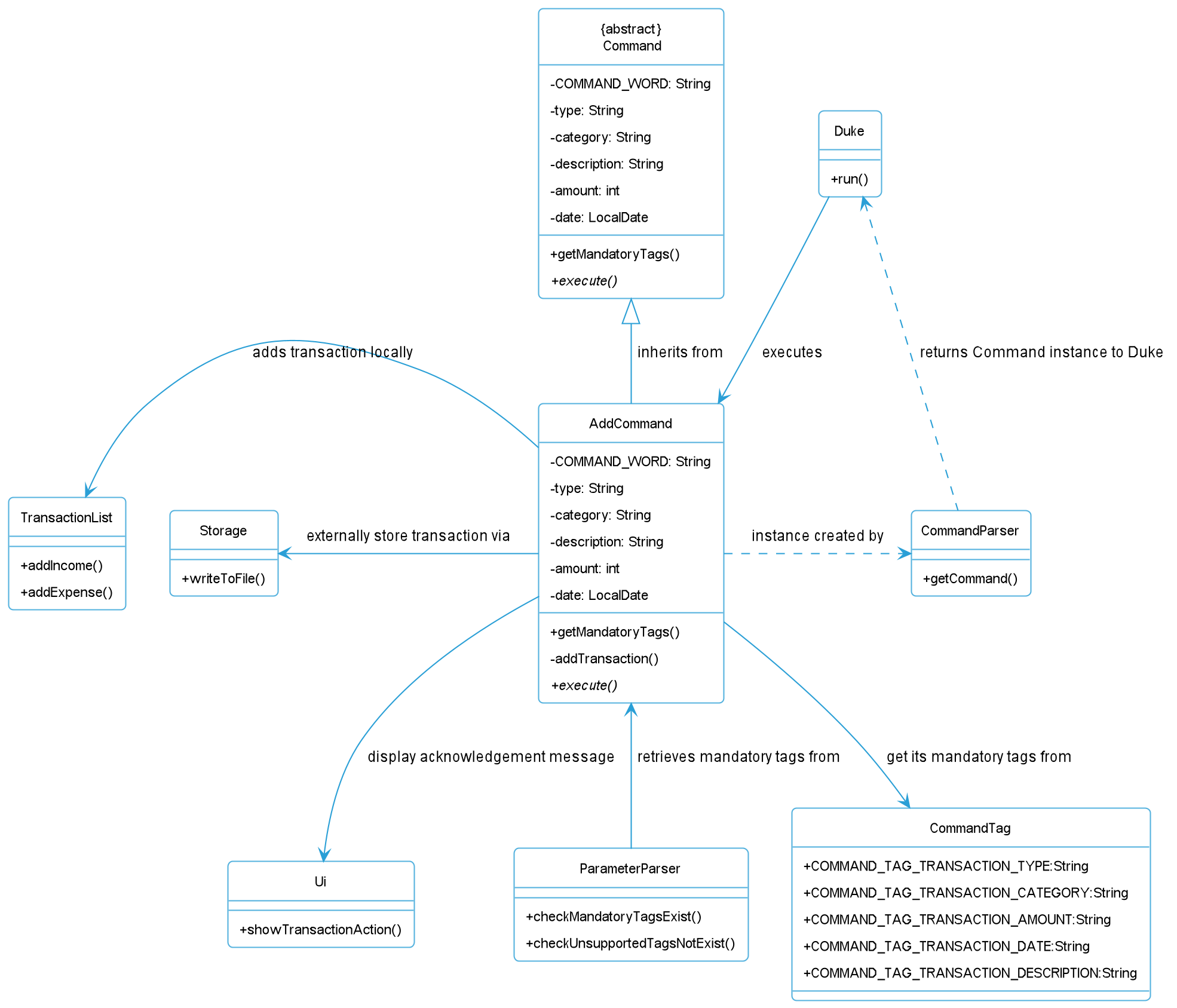

Figure 11: Class Diagram for Add Command and Related Classes

These are the important operations performed within the AddCommand class, with task description:

The structure of the application focusing on the Add command is illustrated in the simplified sequence diagram below:

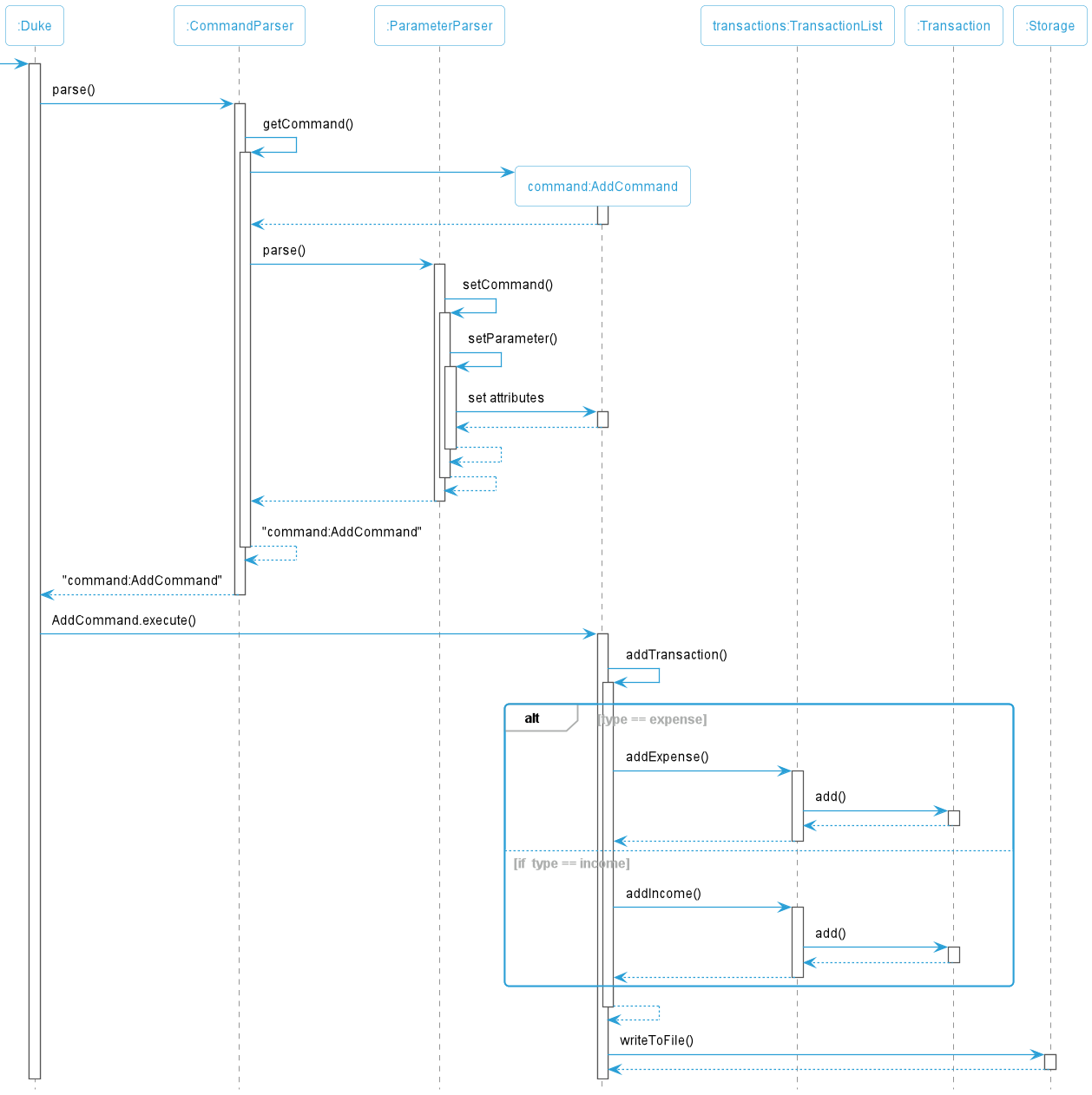

Figure 12: Sequence Diagram for Add Command

In a command like add t/expense c/food a/20 d/13092022 i/NIL OR add t/income c/salary a/2000 d/30092022 i/jan_salary

  1. The user input would be parsed via CommandParser.parse() method.
  2. In CommandParser.parse(), getCommand() would be called which initializes AddCommand. Then it would call ParameterParser.parse().
  3. In ParameterParser.parse(), the user input will be parsed further before the data is stored into AddCommand via ParameterParser.setCommand() , which calls for ParameterParser.setParameter() to set the attributes within the AddCommand instance.
  4. The CommandParser.parse(), would then return the instance of Addcommand to Duke class.
  5. AddCommand.execute() would be called, in which it will attempt to add its objects to the TransactionList based on the type of transaction, either income or expense.
  6. After the storage or the user input into TransactionList, Storage.writeToFile() would write the contents of TransactionList to the storage file, duke.txt.

Written by: Yong Chin Han

5.4. Edit Command

The EditCommand inherits properties from the abstract Command class. The inheritance of Command from EditCommand is shown below.

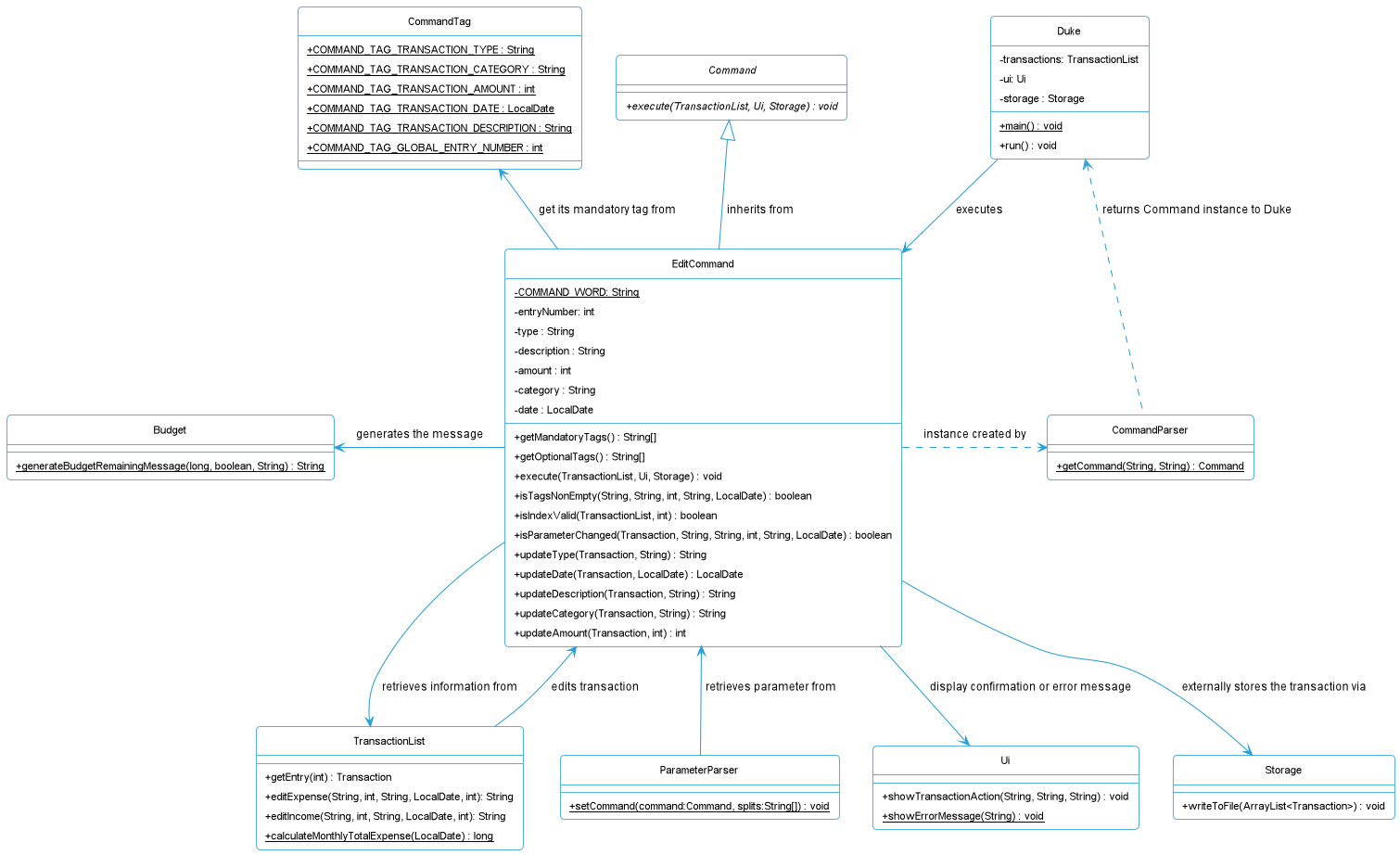

Figure 13: Class Diagram for Edit Command

The full command for edit is edit [e/ENTRY] [t/TYPE] [c/CATEGORY] [a/AMOUNT] [d/DATE] [i/DESCRIPTION].

For example, if ‘edit’ is called, the specific entry inputted in the command is edited based on the parameters inputted. Only the entry and at least one tag is needed for this command to work.

In a command like edit e/2 t/expense c/food a/10 d/20102022 i/chicken:

  1. The main() method in Duke calls run() in Duke. The ui reads the command via ui.readCommand() and parses it through CommandParser.parse().

  2. Within CommandParser.parse(), a few functions are called internally.
    1. spiltInput() is called which splits the command from the parameter.
    2. getCommand() is called which searches for the command.
    3. ParameterParser.parse() is called.
  3. Within ParameterParser.parse(), a few functions are called internally as well.
    1. checkMandatoryTagsExist() is called where the parameters are checked for all required tags exist based on the command.
    2. checkUnsupportedTagsNotExist() is called to check if the parameter do not contain any unsupported tags based on the command.
    3. checkDuplicateTagsNotExist() is called to check if the parameter do not contain any duplicate tags.
    4. checkParameterNotEmpty() is called to check that the parameter inputted is not empty.
    5. Once all these checks are successful, setCommand() is called.
  4. Within setCommand(), more functions are called internally.
    1. setParameter() is called to set the index of the transaction to be deleted.
    2. The setting is done via command.setEntryNumber() which takes in the parameter and executes it in the DeleteCommand Class.
    3. The parameter, however, needs to be further parsed through the execution of the parseEntryTag() function.
    4. It converts the parameter, which is currently a String, to a Int.
  5. The edit command is undergoing execution in command.execute() which will call functions within the EditCommand Class.
    1. The index, which is the local entryNumber variable, goes under further checks by ascertaining whether it is greater than the total number of transactions in the list or lesser than or equal to zero.
    2. It tells the total size via the local numberOfTransactions variable which takes the value called by transactions.size() which is located in the TransactionList class.
    3. If the checks fail, i.e. the index is invalid, isInputValid is set as false.
  6. The if-else statements does the following:
    1. Retrieves the transaction to be edited via transactions.getEntry().
    2. Checks if the local variable newType is null. This implies that no t/expense or t/income was indicated by the user. The program then retrieves the type of transaction via entry.getType()
    3. It then splits to another if-else branches which handles the edits using either transactions.editExpense() or transactions.editIncome().
    4. For each of these branches, should the optional tag be left blank, retrieves the relevant field using the getter functions.
    5. In order to edit the following transaction, it has to be deleted first and then reinserted. This is done by calling transactions.deleteTransaction() and then inserts back in at the same spot which is handled by transactions.add() at the specific entry.
  7. The display shows the successful deletion via ui.showTransactionAction() and writes it to file by storage.writeToFile().

The sequence diagram below shows the interactions of a successful execution of the EditCommand.

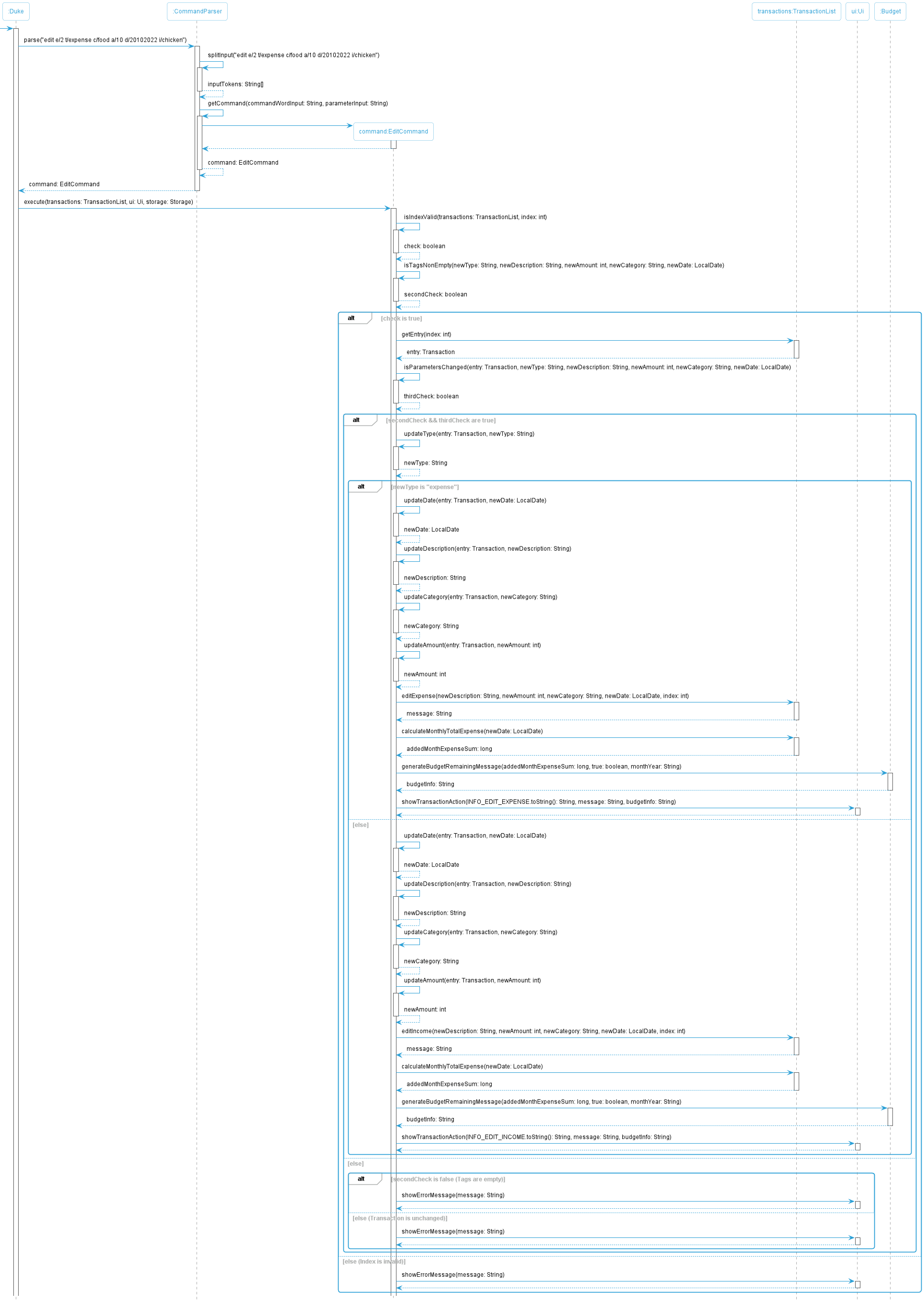

Figure 14: Sequence Diagram for Edit Command

Written by: Brian Wong Yun Long

5.5. List Command

The full command for list is list [t/TYPE] [c/CATEGORY] [d/DATE] For example, if ‘list’ is called, all transactions that are present in Moolah Manager will be listed out Adding tags such as year, month, day, type, category will list all transactions that apply to that tag.

The structure of the application focusing on the list command is illustrated in the class diagram below:

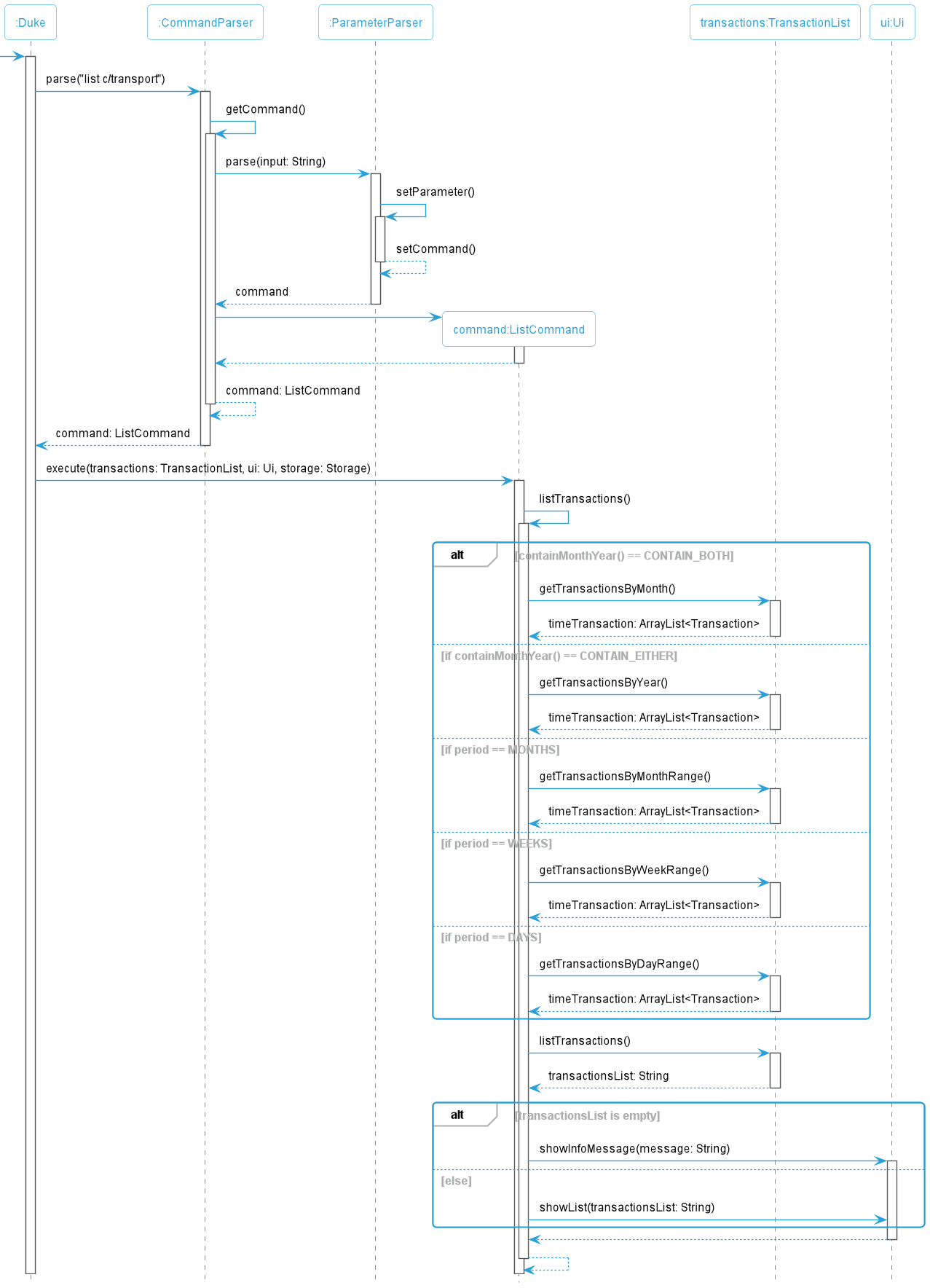

Figure 15: Sequence Diagram for List Command

In a command like list c/transport

  1. The main() method in Duke calls run() in Duke. The command is parsed through CommandParser.parse().
  2. Within CommandParser.parse(), getCommand() is called to obtain the command, before ParameterParser.parse() is called
  3. Various checks are done through functions within parameter.parse()
  4. The list command is undergoing execution in command.execute() which will call listTransactions() in ListCommand
  5. Depending on the various tags that could be used in list Command, the List Class will call the relevant getTransaction function to obtain an ArrayList of time Transactions.
  6. Next, getCommand() is called to obtain a String of transactionList from the ArrayList.
  7. ui.showTransactionsList() is then executed since parameters are present, causing the matching transactions to be displayed.

Written by: Paul Low

5.6. Find Command

The FindCommand class provides the search functionality for finding a specific or few transactions from the list of transactions in Moolah Manager. Using the command find k/KEYWORD, the criteria for retrieving the matching transactions is based upon the partial or full match of the user KEYWORD input compared with the description of each transaction object.

Figure 16 below is a class diagram for the Find command class and its associations with other classes that contribute to the listing of filtered transactions. Some methods and variables have been omitted from the class diagram for simplicity.

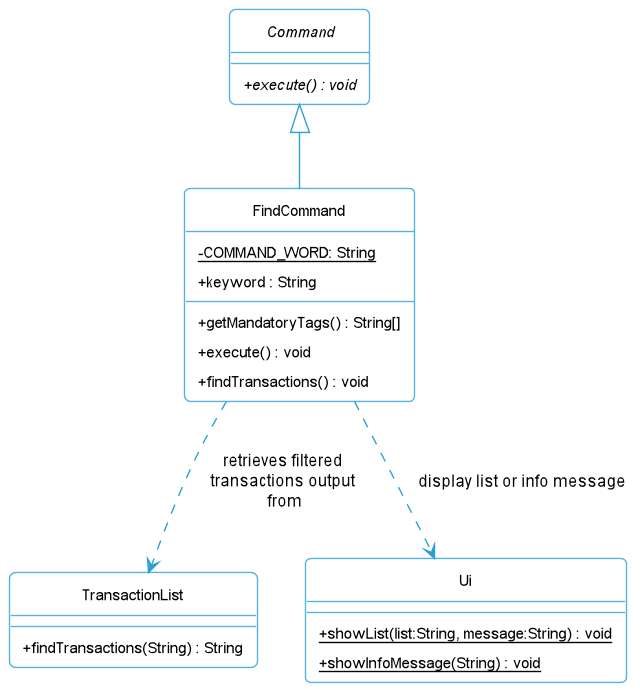

Figure 16: Class Diagram for Find Command

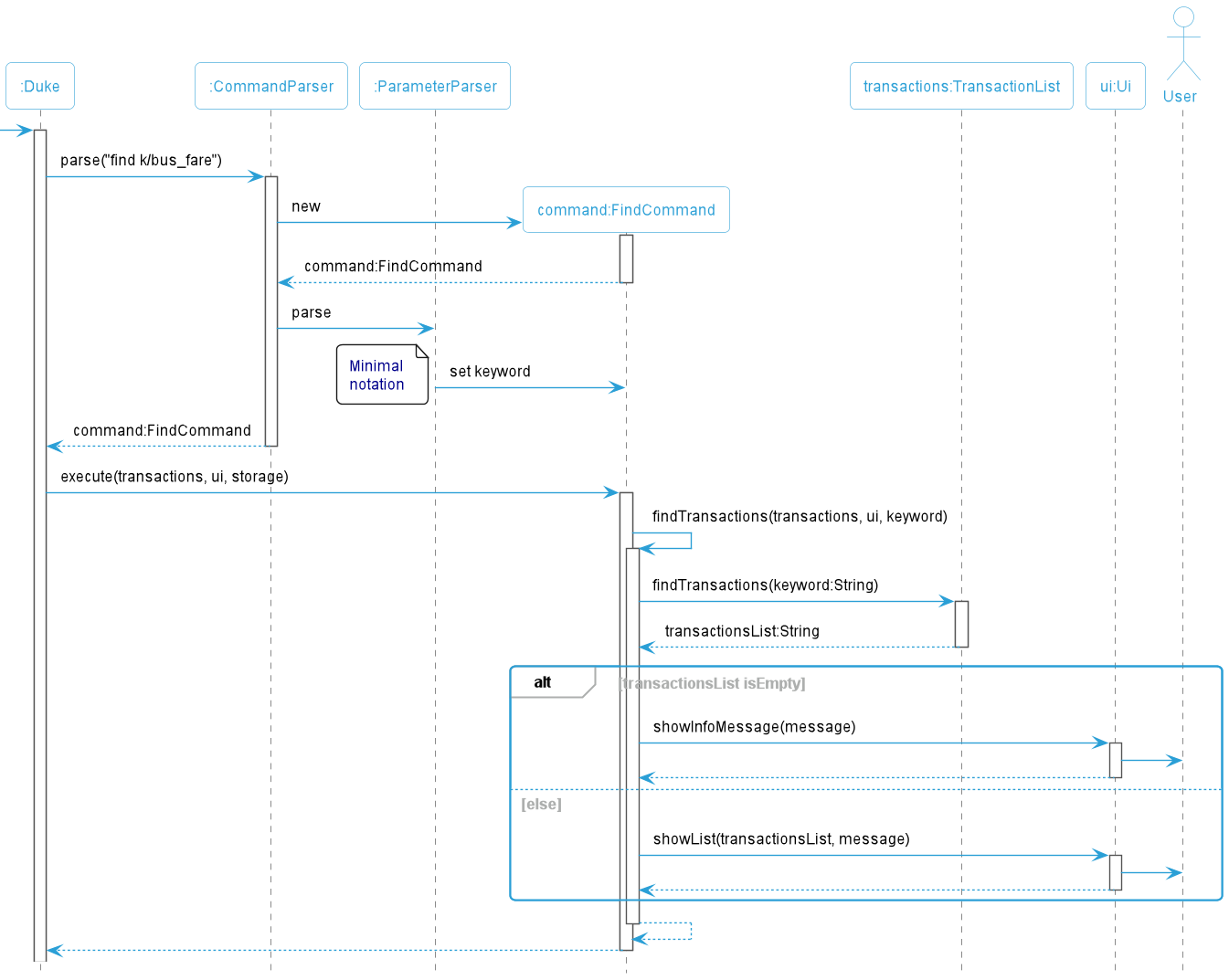

The sequence diagram below shows the interactions of a successful execution of the FindCommand, using an example of find k/bus_fare.


Figure 17: Sequence Diagram for Find Command

Referring to Figure 17, the following is a summarized steps of the interactions that FindCommand performs, with some higher level details in CommandParser and ParameterParser omitted for simplicity.

  1. The user executes find k/KEYWORD command with an intent to view a filtered list of transactions that match the search keyword, e.g. bus_fare.
  2. The CommandParser#parse() method will initialize the Command object with FindCommand, and thereafter, the initialization of the keyword variable is performed in the ParameterParser class.
  3. In the ParameterParser class, various checks are performed to ensure that only a single search keyword without spaces has been entered.
  4. Once all checks have passed, FindCommand class will execute() whereby it will call FindTransactions() twice (once within itself, and the other on the TransactionList class) to generate the list of filtered transactions. The purpose of TransactionList#findTransactions() is to loop through all Transaction objects from ArrayList<Transaction> transactions, checking if their description match the keyword given. Note that it is checked on a case-insensitive basis.
  5. Matching Transaction objects will be appended into a formatted string and returned to the FindCommand class.
  6. If FindCommand class checks that transactionsList string is empty, it will call Ui#showInfoMessage(). Otherwise, Ui#showList() method is called to display the transactions.

Written by: Chua Han Yong Darren

5.7. Delete Command

The DeleteCommand inherits properties from the abstract Command class. The inheritance of Command from DeleteCommand is shown below.

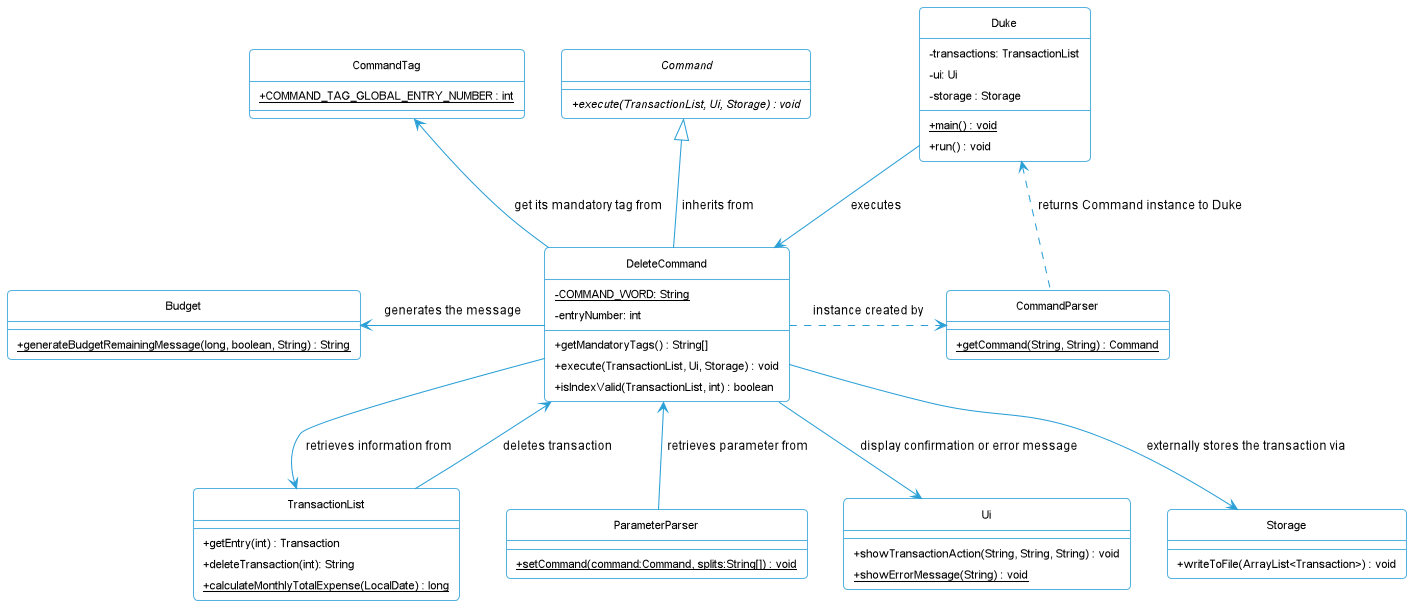

Figure 18: Class Diagram for Delete Command

The full command for delete is delete [e/ENTRY]. For example, if ‘delete’ is called, the specific entry inputted in the command is deleted from the list of transactions in Moolah Manager.

In a command like delete e/2:

  1. The main() method in Duke calls run() in Duke. The ui reads the command via ui.readCommand() and parses it through CommandParser.parse().

  2. Within CommandParser.parse(), a few functions are called internally.
    1. spiltInput() is called which splits the command from the parameter.
    2. getCommand() is called which searches for the command.
    3. ParameterParser.parse() is called.
  3. Within ParameterParser.parse(), a few functions are called internally as well.
    1. checkMandatoryTagsExist() is called where the parameters are checked for all required tags exist based on the command.
    2. checkUnsupportedTagsNotExist() is called to check if the parameter do not contain any unsupported tags based on the command.
    3. checkDuplicateTagsNotExist() is called to check if the parameter do not contain any duplicate tags.
    4. checkParameterNotEmpty() is called to check that the parameter inputted is not empty.
    5. Once all these checks are successful, setCommand() is called.
  4. Within setCommand(), more functions are called internally.
    1. setParameter() is called to set the index of the transaction to be deleted.
    2. The setting is done via command.setEntryNumber() which takes in the parameter and executes it in the DeleteCommand Class.
    3. The parameter, however, needs to be further parsed through the execution of the parseEntryTag() function.
    4. It converts the parameter, which is currently a String, to a Int.
  5. The delete command is undergoing execution in command.execute() which will call functions within the DeleteCommand Class.
    1. The index, which is the local entryNumber variable, goes under further checks by ascertaining whether it is greater than the total number of transactions in the list or lesser than or equal to zero.
    2. It tells the total size via the local numberOfTransactions variable which takes the value called by transactions.size() which is located in the TransactionList class.
    3. Should the above condition be true, it is no longer a valid input and the local isInputValid variable is set as false.
    4. An exception is thrown if isInputValid is false. Otherwise, transactions.deleteTransaction() is called to remove it.
  6. The above function is called in the TransactionList class which does the following:
    1. Retrieves the transaction to be deleted via transactions.get().
    2. Removes it via transactions.remove().
  7. The display shows the successful deletion via ui.showTransactionAction() and writes it to file by storage.writeToFile().

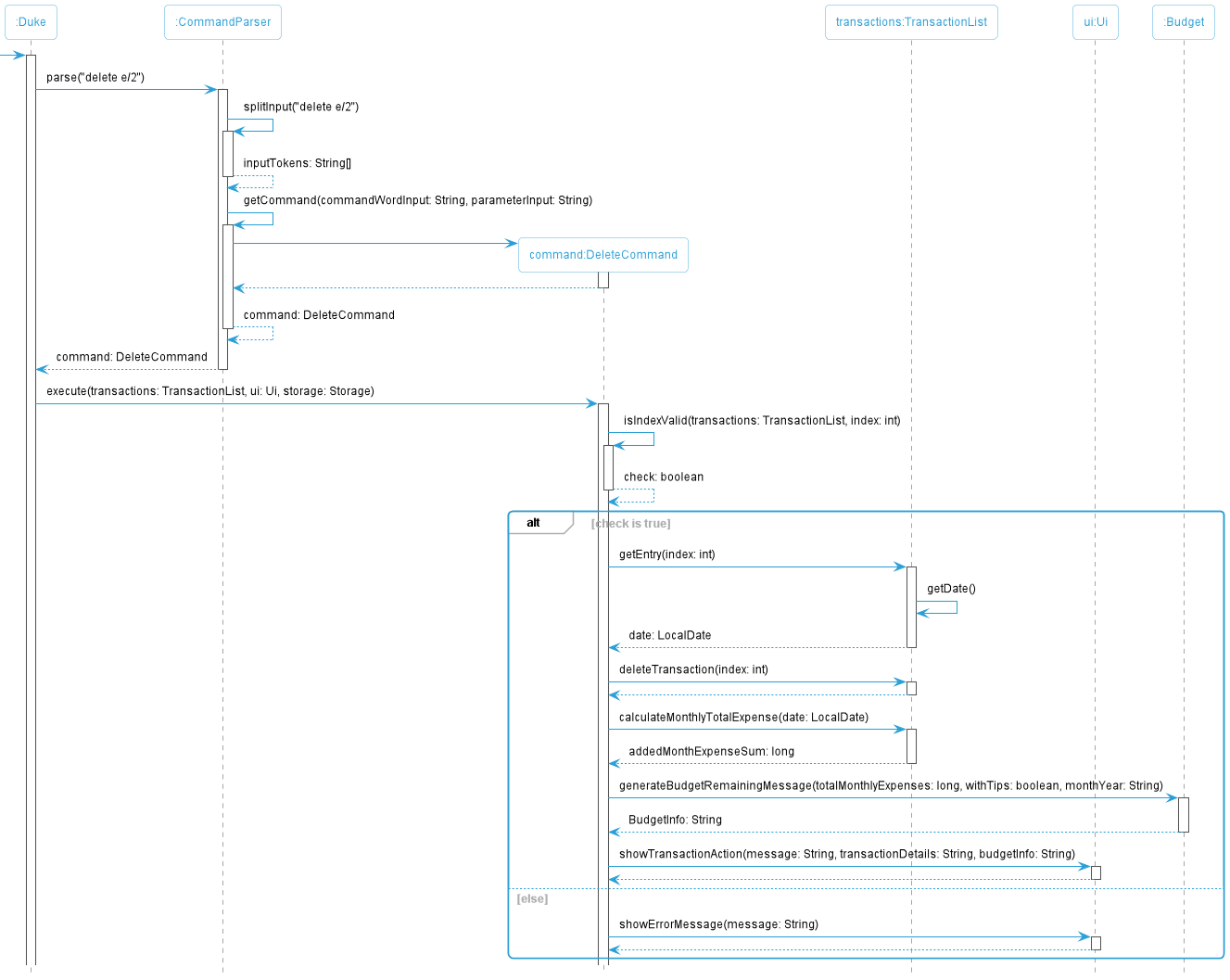

The sequence diagram below shows the interactions of a successful execution of the DeleteCommand.


Figure 19: Sequence Diagram for Delete Command

Written by: Brian Wong Yun Long

5.8. Purge Command

The PurgeCommand inherits properties from the abstract Command class. The inheritance of Command from PurgeCommand is shown below.


Figure 20: Class Diagram for Purge Command

The full command for purge is purge. For example, if ‘purge’ is called, all transactions in Moolah Manager are removed.

This is how the command works:

  1. The main() method in Duke calls run() in Duke. The ui reads the command via ui.readCommand() and parses it through CommandParser.parse().

  2. Within CommandParser.parse(), a few functions are called internally.
    1. spiltInput() is called which splits the command from the parameter.
    2. getCommand() is called which searches for the command.
    3. ParameterParser.parse() is called.
  3. Within ParameterParser.parse(), a few functions are called internally as well.
    1. checkMandatoryTagsExist() is called where the parameters are checked for all required tags exist based on the command.
    2. checkUnsupportedTagsNotExist() is called to check if the parameter do not contain any unsupported tags based on the command.
    3. checkDuplicateTagsNotExist() is called to check if the parameter do not contain any duplicate tags.
    4. checkParameterNotEmpty() is called to check that the parameter inputted is not empty.
    5. Once all these checks are successful, setCommand() is called.

  4. Within setCommand(), there is no parameters required to be set for purge.

  5. The purge command is undergoing execution in command.execute() which will call functions within the PurgeCommand Class.
    1. The function calls isEmpty() which returns true if the list of transactions is zero, false otherwise. It is stored in the local check variable.
    2. The above function compares the size of the transactions list through the transactions.size() which is executed in the TransactionList class and see if both are equal to zero.
    3. The display will show an empty message if isEmpty() returns true via ui.showInfoMessage(), which exits the command.
    4. Otherwise, a warning is displayed through ui.showInfoMessage() and reads in an input for the user to respond through ui.readCommand().
    5. If the input is Y, the command goes ahead and executes the transactions.purgeTransactions(). Any other input will abort the command and the display will show an aborted message through ui.showInfoMessage().
  6. The transactions.purgeTransactions() function is executed in the TransactionList class.
    1. The transactions.clear() function is called which deletes every single entry in Moolah Manager
  7. The display shows the successful purging via ui.showInfoMessage() and writes it to file by storage.writeToFile().

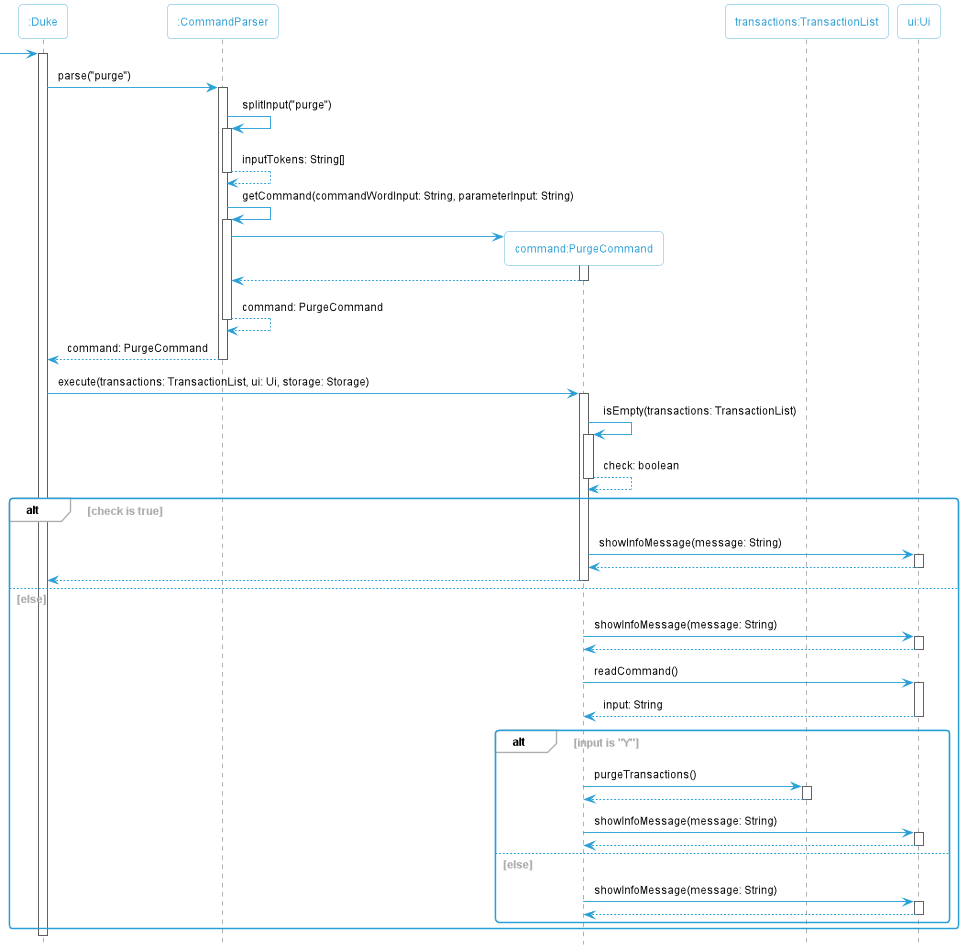

The sequence diagram below shows the interactions of a successful execution of the PurgeCommand.


Figure 21: Sequence Diagram for Purge Command

Written by: Brian Wong Yun Long

6. Implementation for Budgeting and Financial Insights

6.1. Overview

Moolah Manager supports the viewing of summarised expenses in daily, weekly and monthly formats to show categorical savings or overall expenditure. As such, we have developed streamlined methods to filter the transactions by time period prior to passing them into the Stats command class for generating insights. Beyond gathering of these insights, users can also allocate a monthly budget to help them manage their spending.

Written by: Chua Han Yong Darren

6.2. Proposed Implementation

The List and Stats command classes inherit their methods from the ListAndStats command class when setting global tags (year, month, number, period) and performing checks on their usage. Likewise, retrieval of filtered transactions by time periods is also done in ListAndStats command class, streamlining the workflow for both the List and Stats commands. This way, the Stats command class focuses on generating the different types of statistics rather than having to deal with an overhead of needing to consolidate the transaction entries of different time periods.

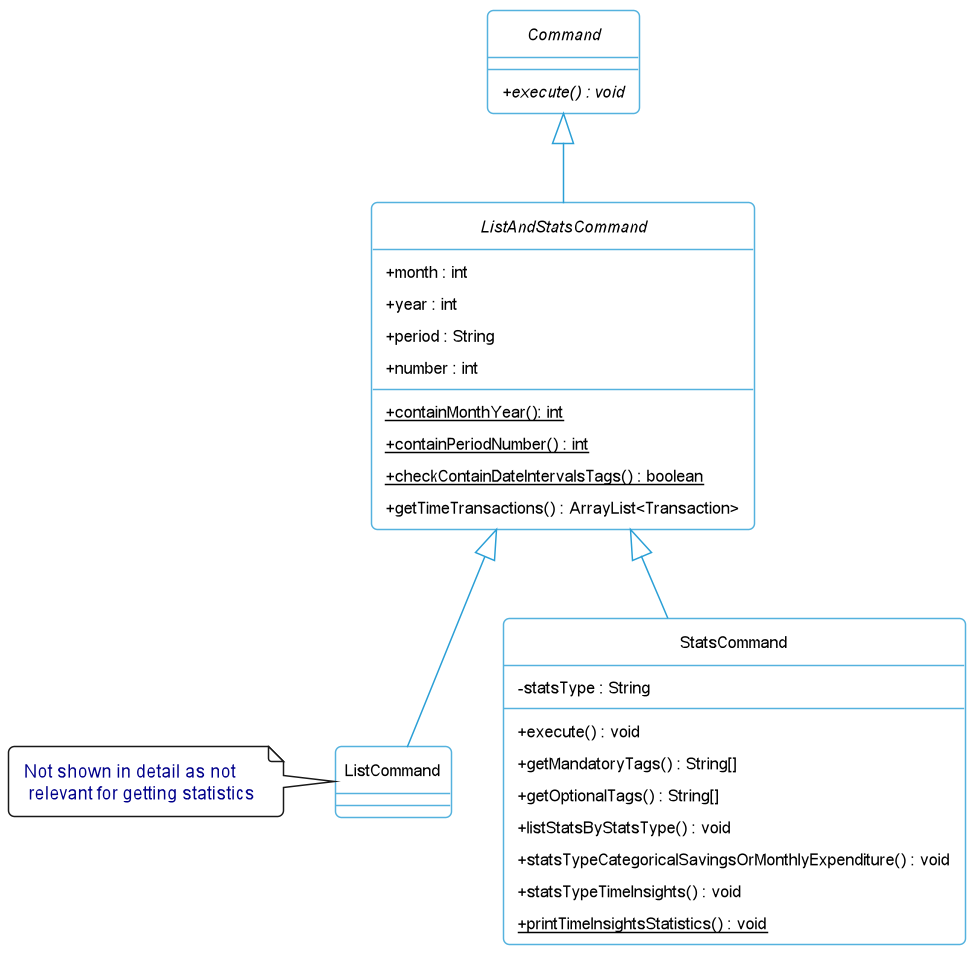

Figure 22 below is a class diagram that illustrates the inheritance for the Stats command class.


Figure 22: Class Diagram for Stats Command

Elaborating on the checks for date interval tags and retrieval of the filtered transactions by time periods, the two significant methods are checkContainDateIntervalsTags() and getTimeTransactions(). The table below depicts the possible scenarios that may arise upon validation of these tags in the ListAndStats command class. These tags are used with list or stats s/time_insights commands.

Date Interval Tags Purpose Outcome
y/<YYYY> View financial insights for a particular year. TransactionList#getTransactionsByYear() will be called for list of transactions filtered by year.
y/<YYYY> m/<N> View financial insights for a particular month. TransactionList#getTransactionsByMonth() will be called for a list of transactions filtered by month.
p/days n/<N> View financial insights for the last N days. TransactionList#getTransactionsByWeekRange() will be called for a list of transactions filtered by last N days (backdated from today).
p/months n/<N> View financial insights for the last N months. TransactionList#getTransactionsByMonthRange() will be called for a list of transactions filtered by last N months (backdated from first day of current month).
p/weeks n/<N> View financial insights for the last N weeks. TransactionList#getTransactionsByDayRange() will be called for a list of transactions filtered by last N weeks (backdated from Monday of current week).

If no date interval tags are used together with s/time_insights or they are combined incorrectly (i.e. their usage does not appear in the table above), exceptions will be thrown. This prevents an incorrect transactions list from being further passed to other methods within the Stats command class.

The budget is a static variable stored inside the Budget class. The budget variable is checked during the following phase of the applications, with relevant reminder, tips and advices displayed:

Application Phase Display Purpose
Program starts Budget Reminder To remind user on the budget remained for the current month.
Adding, editing or deleting of transactions Budget Tip To alert user on the effect of the new transaction on the month’s budget.
Monthly expenditure or insight Spending habit, budget advice To advise user on the proportion of user’s spending and budget.

The spending habit and budget advices displayed on monthly expenditure or specific month insight are generated dynamically based on the proportion of user’s spending. This allows the application to provide suitable advices to the user.

Written by: Chua Han Yong Darren (List and Stats), Chia Thin Hong (Budget)

6.3. Stats Command

The StatsCommand class provides the functionalities for users to get an overview of their financial insights based on the statistics for the transactions. These statistics are generated using the list of transactions that is stored in Moolah Manager application.

The following are the available commands:

The sequence diagram below shows the interactions of a successful execution of the StatsCommand, using an example of stats s/categorical_savings.


Figure 23: Sequence Diagram for Stats Command

Referring to Figure 23, the following is a summarized steps of the interactions that StatsCommand performs when a user is requesting for the categorical savings. Higher level details in CommandParser and ParameterParser have been omitted for simplicity. Additionally, segments of interaction for getting monthly expenditure and time insights have been put into isolated sequence diagrams to break down the information.

  1. The user executes stats s/categorical_savings command with an intent to view his or her categorical savings.
  2. The CommandParser#parse() method will initialize the Command object with StatsCommand. The initialization of the statsType variable is performed in the ParameterParser class.
  3. In the ParameterParser class, various checks are performed to ensure that all the tags and parameters in the input have been filled up in correspondence to their respective requirements.
  4. Once all checks have passed, StatsCommand class will execute() whereby it will verify the related tags for date intervals (year, month, period, number) first to ensure that they are not entered together with the s/categorical_savings tag. This verification is performed in ListAndStats command class and is not shown in the sequence diagram for the brevity of this section.
  5. Moving on, listStatsByStatsType() will be called and when it confirms that the requested statistics type is categorical_savings, it will call statsTypeCategoricalSavingsOrMonthlyExpenditure() method to produce the list of categorical savings. Here, TransactionList#listCategoricalSavings() will use a hashmap to store different categories from the TransactionList and append the amount for each category accordingly until all transactions are exhausted.
  6. A formatted string of output collected from looping through the hashmap will be returned to the StatsCommand class.
  7. If StatsCommand class checks that genericStatsList string is empty, it will call Ui#showInfoMessage(). Otherwise, Ui#showList() method is called to display the categorical savings.

Amongst the omitted frames in Figure 23, below two are the sequence diagrams for getting monthly expenditure and time insights.

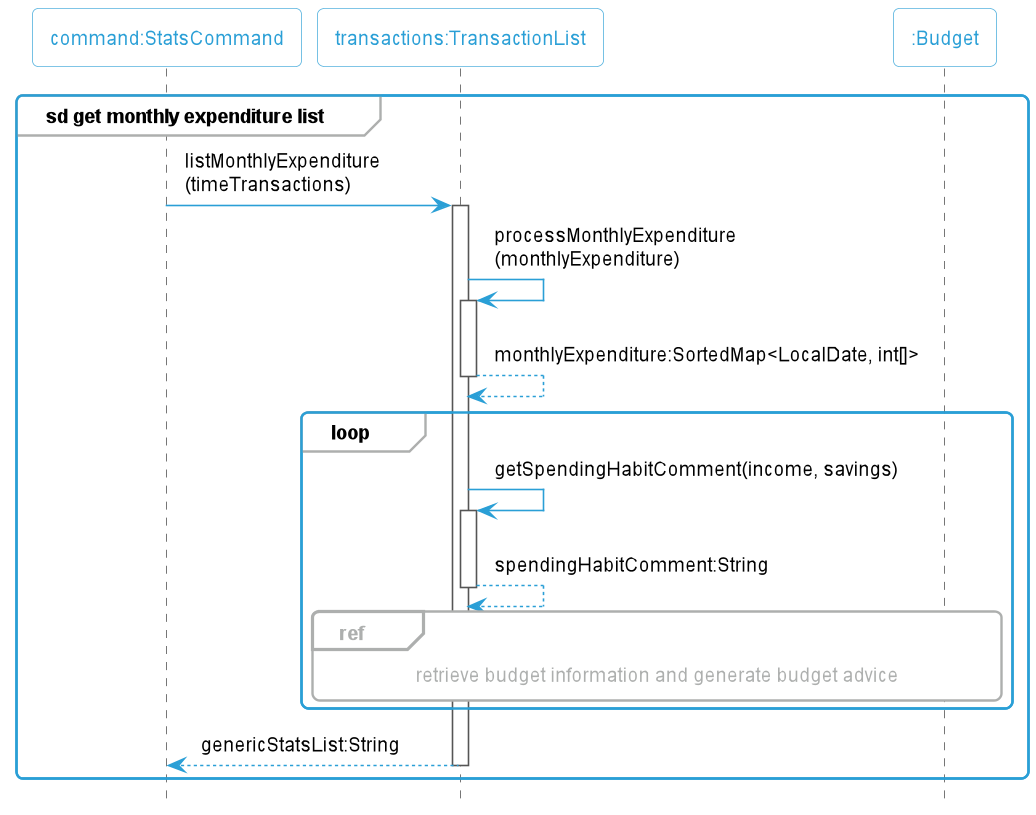

Figure 24: Sequence Diagram for Stats Command (Getting Monthly Expenditure List)

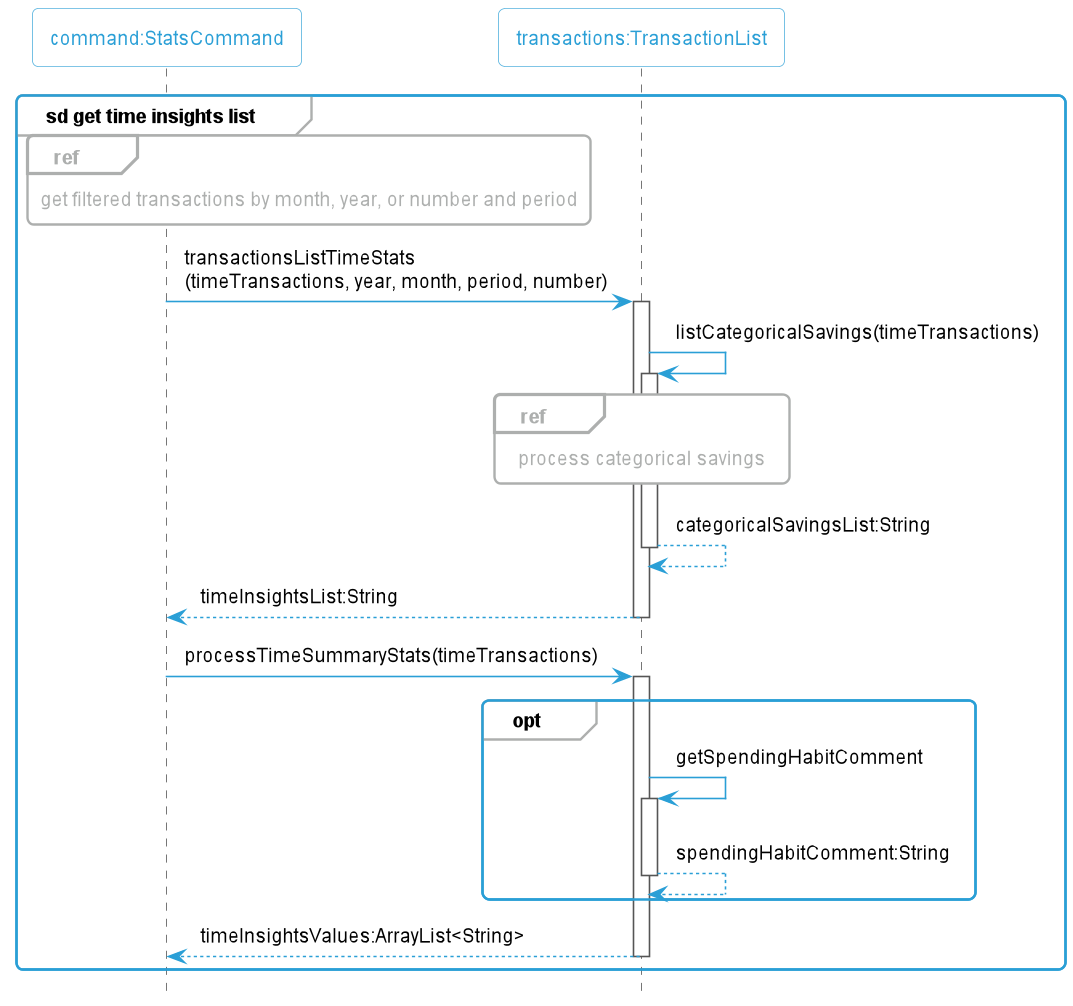

Figure 25: Sequence Diagram for Stats Command (Getting Time Insights List)

Written by: Chua Han Yong Darren

6.4. Budget Command

The budget command allows user to set a new monthly budget. The range of accepted budget value is stored in the common/Constants.java file, whereby the content of the file is as such:

public static int MAX_TRANSACTIONS_COUNT = 1000000;
public static int MIN_AMOUNT_VALUE = 1;
public static int MAX_AMOUNT_VALUE = 10000000;
public static int MIN_BUDGET_VALUE = 1;
public static long MAX_BUDGET_VALUE = Long.valueOf(MAX_TRANSACTIONS_COUNT) * Long.valueOf(MAX_AMOUNT_VALUE);

Under the default setting, the acceptable range of the monthly budget, is 0 < budget <= 10000000000000, which is 10^13, and it ensures that no integer overflow will occur as the long data type is used.

To set a new budget, user can use the command budget b/AMOUNT where the AMOUNT tag is any whole number within the valid range above.

The interaction of the components on setting a budget can be seen in the sequence diagram under How the Architecture Components Interact with Each Other.

Written by: Chia Thin Hong

7. Implementation for Miscellaneous Operations

7.1. Help Command

The help command displays the help message to the users to guide them on the usage and provide descriptions for each available command and parameter.

The help command can be run as help [q/COMMAND] or help o/detailed [q/COMMAND], where the latter will display a more detailed version of help messages to the users. If the user provide the optional q/COMMAND tag, the help command will only return the help message of the chosen command.

The structure of the application focusing on the help command is illustrated in the class diagram below:


Figure 26: Class Diagram for Help Command

For each command subclass, they will implement the getHelpMessage() and getDetailedHelpMessage() methods. These methods will contain their corresponding HelpMessage Enum that stores the help messages as strings inside the enum.

In the help command, when execute() is called, it will call either generateBasicHelp() or generateDetailedHelp() method based on the help option chosen by the user.


Figure 27: Sequence Diagram for Help Command

Written by: Chia Thin Hong

7.2. Bye Command

The ByeCommand inherits properties from the abstract Command' class. The inheritance of Command from ByeCommand is shown below.

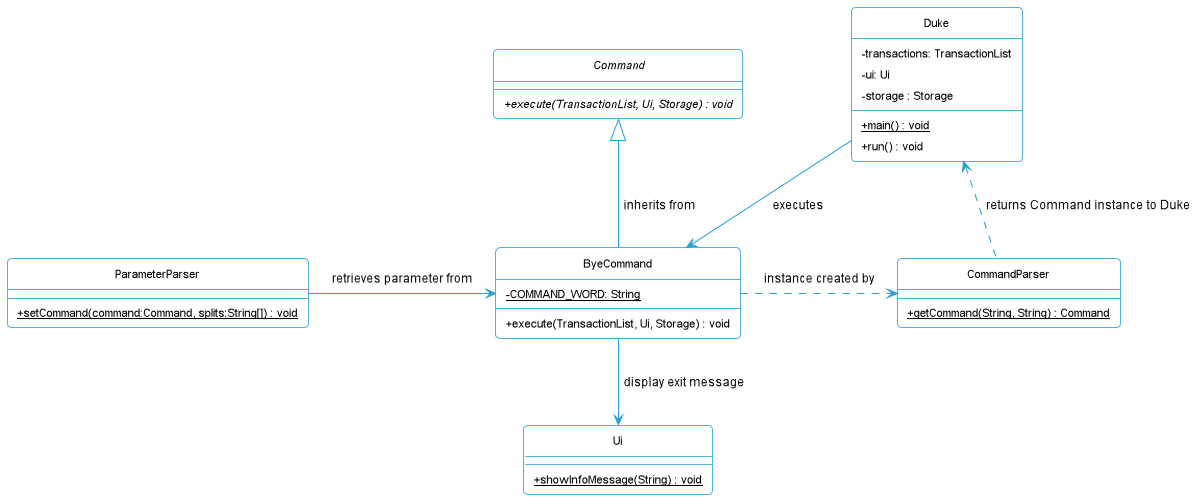

Figure 28: Class Diagram for Bye Command

The full command for bye is bye. For example, if ‘bye’ is called, the program prints the exit message and terminates the program.

This is how the command works:

  1. The main() method in Duke calls run() in Duke. The ui reads the command via ui.readCommand() and parses it through CommandParser.parse().

  2. Within CommandParser.parse(), a few functions are called internally.
    1. spiltInput() is called which splits the command from the parameter.
    2. getCommand() is called which searches for the command.
    3. ParameterParser.parse() is called.
  3. Within ParameterParser.parse(), a few functions are called internally as well.
    1. checkMandatoryTagsExist() is called where the parameters are checked for all required tags exist based on the command.
    2. checkUnsupportedTagsNotExist() is called to check if the parameter do not contain any unsupported tags based on the command.
    3. checkDuplicateTagsNotExist() is called to check if the parameter do not contain any duplicate tags.
    4. checkParameterNotEmpty() is called to check that the parameter inputted is not empty.
    5. Once all these checks are successful, setCommand() is called.

  4. Within setCommand(), there is no parameters required to be set for bye.

  5. The bye command is undergoing execution in command.execute() which will call functions within the ByeCommand Class.
    1. It calls ui.showInfoMessage() which prints the exit message.
    2. isExit() is set as true.
  6. Within run() in Duke, the loop is exited and the program ends.

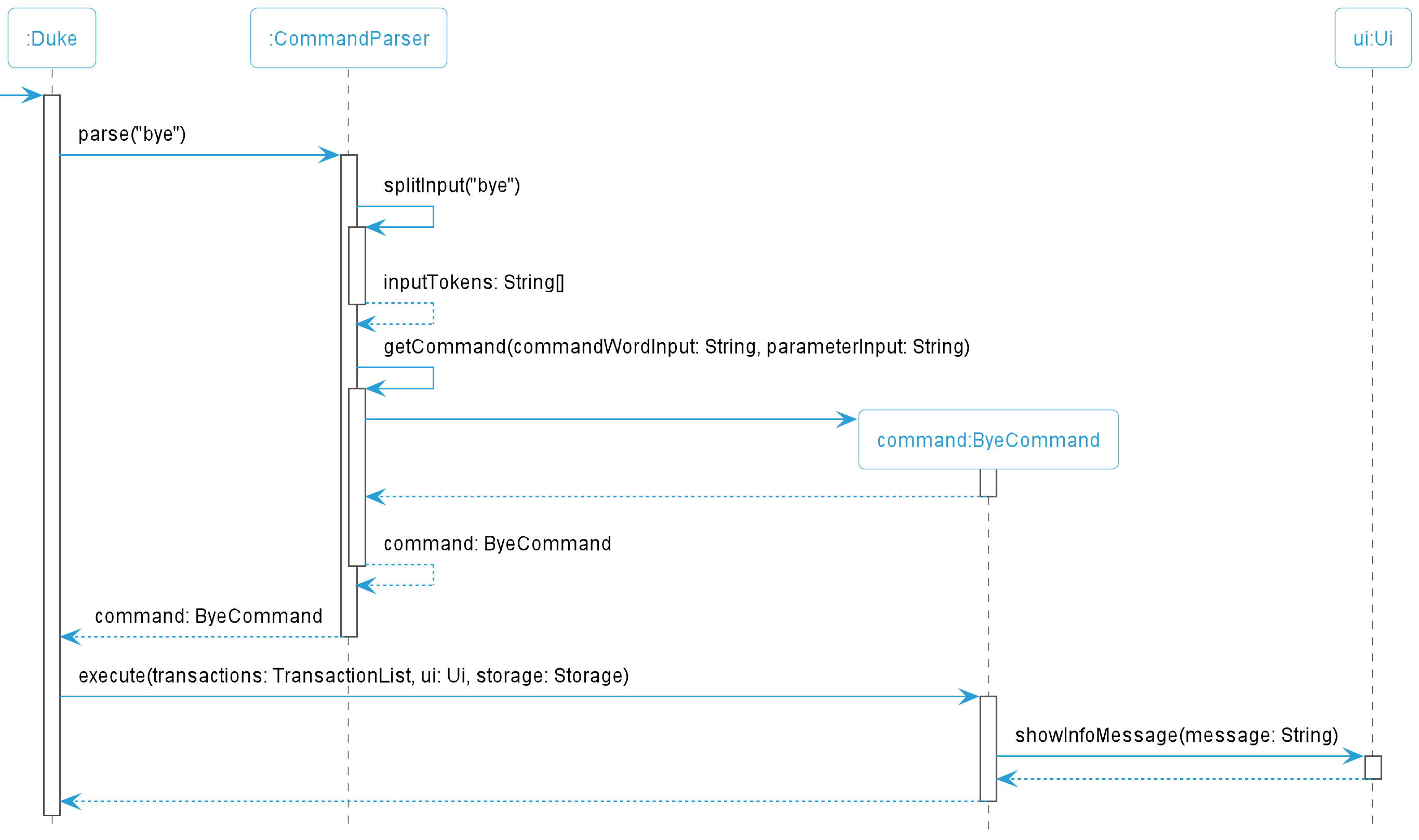

The sequence diagram below shows the interactions of a successful execution of the ByeCommand.


Figure 29: Sequence Diagram for Bye Command

Written by: Brian Wong Yun Long

7.3. Storage Operations

The Storage class is a standalone class that contains methods used for the storage of Transaction entries and the Budget value.

The class is first called by Duke during the initialising of the TransactionList. In this process, the existence of duke.txt will be verified.

  1. If the file does not exist, an empty Duke.txt file would be created for the program to use.
  2. If the file exists, it’s values would be parsed to verify if they have been corrupted. If corrupted, the storage of values would halt and error messages would be shown to prompt user to correct file issues. Else, the values would update the program’s Budget and the entries in TransactionListwithout any issues.

Reading From Duke.txt

This specific operation is done during the initializing of the program. The Budget value and TransactionList entries would be parsed before their values are added into the program. Storage#initializeFile is called by Duke. Storage#checkIfFileExist is used to check if Duke.txt exists, and creates a new Duke.txt file if it does not exist. Storage#storeFileValuesLocally uses sub-methods and methods from external classes to parse each line entry within Duke.txt and store the values in the program.

Writing To Duke.txt

This operation is done whenever the TransactionList entries or Budget value is changed via any of the Command classes; (e.g. Add, Delete, Purge , Edit and Budget commands). The method Storage#writeToFile is used to update changes in Budget or TransactionList.

Written by: Yong Chin Han

7.4. Logging Operations

Our team used java.util.logging package for the purposes of logging. We instantiated various objects for different classes such as parserLogger and addLogger to set the log messages.

Logging Levels:

Written by: Paul Low

Appendix A: Product scope

A.1. Target user profile

Moolah Manager is developed for IT professionals who prefer using Command Line Interface (CLI) applications to quickly track and update their daily monetary transactions. They ought to be reasonably comfortable in typing over mouse interactions and can type fast.

A.2. Value proposition

Financial bookkeeping using a mobile application is often a hassle due to repetitive clicks. Moolah Manager boasts a time-saving CLI that encourages individuals to take ownership of tracking and reviewing their daily or monthly transactions in an efficient and effective way. Moreover, it facilitates budget planning to prevent overspending.

Appendix B: User Stories

Version As a … I want to … So that I can …
v1.0 fast-typing user type my own actions instead of having to click through different GUI pages have a more convenient way of managing my spending
v1.0 new user have similar features be grouped in the same family navigate the application easily
v1.0 new user list usable commands better utilize the application when I unfamiliar with the commands
v1.0 user add my income and daily expense into the application keep a record of my transaction history
v1.0 user add my salary into the application gather insights from a trend of my income
v1.0 user add a category to each type of spending have an organised view of my financial statements
v1.0 user view my daily expenditure plan how I want to spend my remaining income throughout the rest of the week
v1.0 user know which category of expenses I spend the most on better allocate my income for essential needs
v1.0 careless user delete my spending or expenses in the application remove inputs that are false or outdated
v1.0 careless user receive an error message when entering a wrong command be aware that I need to rectify my incorrect input
v1.0 forgetful user find a specific transaction recall how much I spent or earned for a particular situation
v1.0 busy user purge all my transactions at one go refrain from deleting my transactions one by one when needed
v2.0 new user be guided at the initial stage of using the application make good use of the features
v2.0 frequent user input a file with all my expenses for the application to retrieve data be more efficient and do not need to manually type my financial records into the command prompt
v2.0 frequent user save my input history into a file have the inputs automatically read again in future without having to re-enter similar expenses each time I use the application
v2.0 user gather a summary of my expenditure over a time period (i.e., daily, weekly, monthly) better understand my spending habits
v2.0 user know the amount of savings tabulated from income and expenditure after each month review my spending and plan my budget for the next month
v2.0 user gather individual insights of different time periods after adding my transactions analyze and reflect on the way I am managing my income and expenses
v2.0 user view recommended money-managing tips from the application better improve my money-managing habits
v2.0 user set up and update my budget limit my spending against a budget
v2.0 user archive my financial transactions from the previous years focus on transactions that matter only for the current year
v2.0 careless user modify my spending or expenses in the application rectify any false input
v2.0 forgetful user receive reminders on how I should spend my allowance be consciously aware of my budget constraints
v2.1 user view my remaining budget for each month better manage my expenses to keep them within my monthly budget
v2.1 user gather a summary of my expenditure over the last N days narrow down my scope of listing my transactions to specific situations, e.g. my transactions over the past 1 week
v2.1 user display my transactions and statistics in chronological order of date find my most recent transactions quickly
v2.1 lazy user list the help message for a specific command choose not to scroll up and down to find the command I wish to refer to

Appendix C: Non-Functional Requirements

  1. Should work on common operating systems including Windows, macOSX and Linux as long as it has Java 11 or above installed.
  2. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  3. Does not require an active connection to the Internet to use the application.
  4. Should respond to commands within 3 seconds with no noticeable sluggishness in performance for typical usage.

Appendix D: Glossary

Appendix E: Instructions for Manual Testing

E.1. Launch and Shutdown

E.2. Storage
